Product Details:
|
| Item Name: | Automotive Exhaust Flex Pipe ID 38mm / 45mm / 51mm / 57mm /63mm Car Exhaust Flex Pipe Bellows Double Braid Connector | Inside Diameter: | 38mm / 45mm / 51mm / 57mm /63mm |
|---|---|---|---|
| Bellow Materials: | Stainless Steel 201 Or SUS304 | Wire Braided Body: | 6 Inch / 150mm |
| Overall Length: | 10 Inch / 250mm | Structure: | Inner Braided + Outer Braided + Nipple / Extension Pipe |
| Cap / Collar Materials: | Aluminized Steel Or Stainless Steel For Alternative | Bellow No.: | Single Layer Or Double Layers |
| Application: | Car / Truck Exhaust System | Feature: | No Leak And Suitable Flexibility |
| Main Market: | Lybia, Pakistan, Turkey, Iran, UAE, Southeast Asia Etc | ||
| High Light: | id 38mm automotive exhaust flex pipe,id45mm stainless steel exhaust flex pipe,201 stainless steel exhaust flex pipe |
||
Usage:
1) Flexible pipe, automobile exhaust system component
2) Installed between engine and muffler
3) Used to decrease engine noise and vibration
4) Absorbs exhaust pipe thermal expansion
Short introduction of exhaust flexible pipe:
| Discription | Exhaust Flexible Pipe | Parts No. | YP-EXF175 |
| Inside diameter | 1.75" / 45mm | Style | Exhaust pipe with double wire braid |
|
Bellow length
|
6 inch / 150mm | Overall lenth | 10 inch / 250mm |
| Flex pipe Material | Stainless steel 304 201 | Joint Material | Aluminized steel or stainless steel for alternative |
| Car Make | Universal | Application | Flexible Exhaust pipe for various brand car, bus, truck, and so on. |
| Packing | Plastic bag and seaworthy box | Package Quantity | 1 pcs |
| Brand | YP | Place of Origin | Tianjin, China |
| Certificate | ISO | Warranty |
One Year |
Hot sale Specification of exhaust flexible pipe:

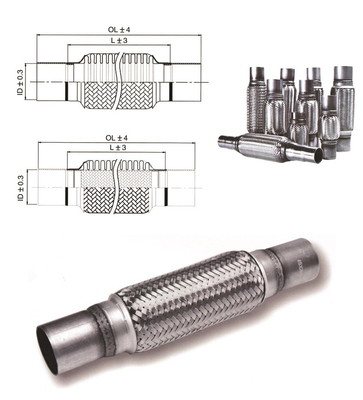

| Inner Diameter (ID) | Flex Length(L) | Overall Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 48mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2”(50.8mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 54mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/4”(57.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/2”(63.5mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 3”(76.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| Note: Customized size are available | ||
Packaging of exhaust flexible pipe:
25pcs per carton. film bag for each product. Mark as request.
FAQ
1. Q: How about the payment terms?
T/T 100% for order value less than $3000. Otherwise, 30% deposit in advance, the balance against the copy of B/L. It can be also discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 100,00 pcs per month. Normally, 5-8 days if stocks available.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for your quality checking. But the freight fee is in buyer side.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Contact me on line or by email. We will give you fast and best offer. Thanks.
