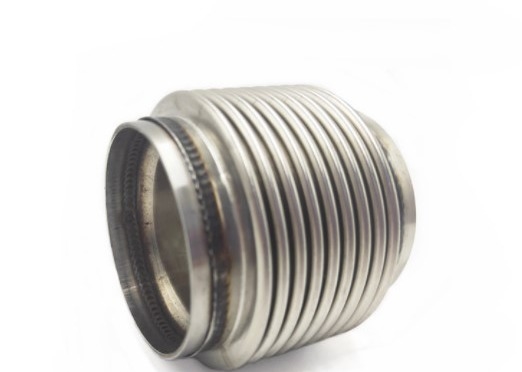

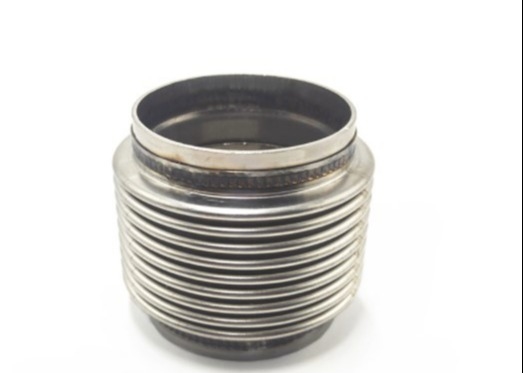

Double Sealed 63mm Flexible Steel Exhaust Pipe Bellows Expansion Joint
63mm flexible steel exhaust pipe
,sus grade flexible steel exhaust pipe
,double sealed 63mm flexible exhaust pipe
Stainless steel double sealed bellows expansion joint bellow pipe
| Product name | corrugated stainless steel flexible bellow tubing |
| Material | Stainless steel 201 or 304 |
| Size | ID:1"~6" len:4"~17" or as requirement |
| Construction | Bellow |
| Working pressure | 0~5 MPa |
| Temp range | 650~800 degrees |
| Packaging | Each one with a PE bag, 25 pieces in a carton box as usual or as requirement |
More sizes of exhaust pipe :
| Part No. | inch | Metric mm | Length inch | Length mm |
| YP13404 | 1-3/4" | 45 | 4" | 102 |
| YP13406 | 1-3/4" | 45 | 6" | 152 |
| YP13407 | 1-3/4" | 45 | 7" | 178 |
| YP13408 | 1-3/4" | 45 | 8" | 203 |
| YP13409 | 1-3/4" | 45 | 9" | 230 |
| YP13410 | 1-3/4" | 45 | 10" | 254 |
| YP13411 | 1-3/4" | 45 | 11" | 280 |
| YP13412 | 1-3/4" | 45 | 12" | 305 |
| YP20004 | 2" | 50.8 | 4" | 102 |
| YP20006 | 2" | 50.8 | 6" | 152 |
| YP20008 | 2" | 50.8 | 8" | 203 |
| YP20009 | 2" | 50.8 | 9" | 230 |
| YP20010 | 2" | 50.8 | 10" | 254 |
| YP20011 | 2" | 50.8 | 11" | 280 |
| YP20012 | 2" | 50.8 | 12" | 305 |
| YP21404 | 2-1/4" | 57.2 | 4" | 102 |
| YP21406 | 2-1/4" | 57.2 | 6" | 152 |
| YP21408 | 2-1/4" | 57.2 | 8" | 203 |
| YP21409 | 2-1/4" | 57.2 | 9" | 230 |
| YP21410 | 2-1/4" | 57.2 | 10" | 254 |
| YP21411 | 2-1/4" | 57.2 | 11" | 280 |
| YP21412 | 2-1/4" | 57.2 | 12" | 305 |
| YP21204 | 2-1/2" / 3" | 63.5 / 76.2 | 4" | 102 |
| YP21206 | 2-1/2" / 3" | 63.5 / 76.2 | 6" | 152 |
| YP21208 | 2-1/2" / 3" | 63.5 / 76.2 | 8" | 203 |
| YP21209 | 2-1/2" / 3" | 63.5 / 76.2 | 9" | 230 |
| YP21210 | 2-1/2" / 3" | 63.5 / 76.2 | 10" | 254 |
| YP21211 | 2-1/2" / 3" | 63.5 / 76.2 | 11" | 280 |
| YP21212 | 2-1/2" / 3" | 63.5 / 76.2 | 12" | 305 |
More Exhaust Stainless Steel Flex Couplings Exhaust Pipe:
A. Bellows + Outer Braid
B. Bellows + Outer Braid + Inner Braid
C. Bellows + Interlock + Outer Braid
D. Type A/B/C + Nipples (extension tube)
Drawing:
