Product Details:
|
| Product Name: | 2.0" 2.5" 3.0" Butt Joint 304 Stainless Steel Multi-specification Lap Joint Exhaust Band Clamp Exhaust Sleeve Clamp | Type: | Exhaust Lap Joint Clamp |
|---|---|---|---|
| Dimension: | 2" 2.25" 2.5" 2.75" 3" 3.5" 4" 4.5" 5" 6" | Band Materials: | Stainless Steel 304 |
| Surface Treatment: | Polished | Color: | Silver |
| Block Materials: | Aluminum | Application: | For Catback Muffler Downpipes |
| Exhaust Clamp Type: | Pre-formed Strap Band Clamp | Style: | Lap Jointed Band Clamp |
| High Light: | 101mm stainless steel exhaust clamps,304 stainless steel exhaust clamps,muffler 4" stainless exhaust clamps |
||

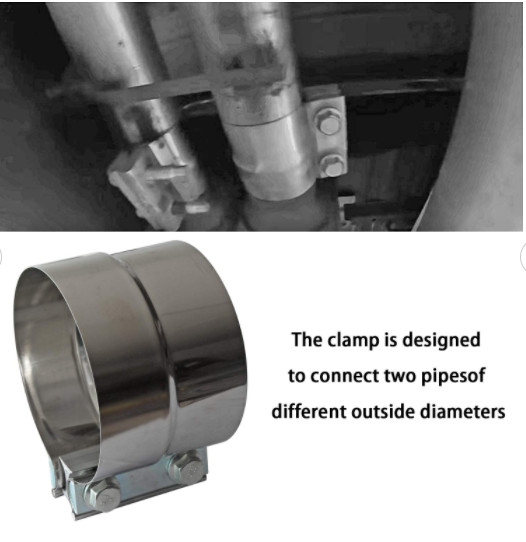

Brief introduction of lap jointed clamp:
| 1 |
Butt Joint exhaust Muffler clamp band |
| 2 |
Seal Muffler Inlets, outlets, elbow joints, pipe |
| 3 |

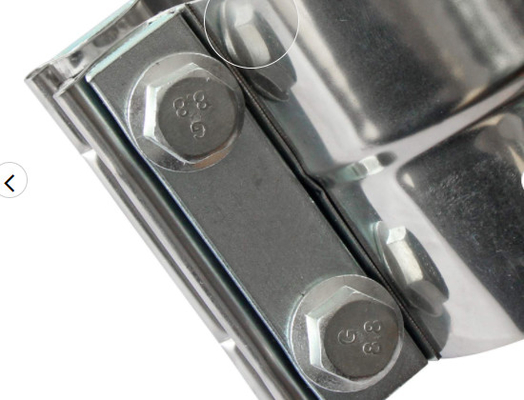

Uses a reaction block that transfers bolt torque into clamp strength |
| 4 |
Available in a wide range of styles and sizes |
| 5 |
304 Stainless Steel Construction |
Specification:
For example : Joint Pipe 2" ID to 2" OD
We offer you 10 different designs and you would better measure the pipe OD before place orders.
| MODEL NUMBER | Dia(mm) | Dia(in) |
| YP-EXFBC020 | 51 | 2" |
| YP-EXFBC225 | 57 | 2.25" |
| YP-EXFBC250 | 64 | 2.5“ |
| YP-EXFBC275 | 70 | 2.75” |
| YP-EXFBC300 | 76 | 3“ |
| YP-EXFBC350 | 89 | 3.5” |
| YP-EXFBC400 | 102 | 4“ |
| YP-EXFBC450 | 114 | 4.5” |
| YP-EXFBC500 | 127 | 5“ |
| YP-EXFBC600 | 152 | 6” |
Feature:
Reaction block provides full 360 degree equal distribution of stretching force. Preformed band with step provides fast and accurate installation. High strength plated fasteners can be torqued from either side of clamp.This exhaust clamp have strong strength, good durability, great apperance and anti-corrosion advantage. Stainless steel band No welding design Easy installation.
Application:
Company information:
As a leading producer of exhaust clamps and flexible pipe in China, we aim to supply best price and high-qualited products on the market to our clients.There are many designs and dimensions for your choice. For example, the exhaust clamp included stainless steel V band clamp kits, butt joint band clamp, galvanized U bolted clamp, and OEM bracket etc.
With customer's request, we also supply exhaust muffler, downpipe and other relative parts through our partners. Our products win a good reputation oversea and widely appeared in the market of North America, Europe, Russia, South America, Middle-East, Southeast Asia and so on.
