Product Details:
|
| Item Name: | Car Exhaust Pipe Wire Braided Flex Bellow With Interlock Liner Stainless Steel 201/304 ID 51mm Length 200mm | Inside Diameter: | 2 Inch / 51mm |
|---|---|---|---|
| Materials: | Stainless Steel 201 / 304 | Overall Length: | 8" / 200mm |
| Structure: | SS Bellow + Inner Braided + Outer Braided | Cap / Collar Materials: | Aluminized Steel Or Stainless Steel For Alternative |
| Bellow No.: | Single Layer Or Double Layers | Application: | Aftermarket Auto Exhaust Pipe |
| Feature: | No Leak And Suitable Flexibility | ||
| High Light: | id51mm stainless steel exhaust flex pipe,id51mm stainless steel flexible exhaust tubing,201 stainless steel exhaust flex pipe |
||
This model of flex pipe made of bellow with interlock liner and outer wire braided. It was assembled aluminized collar cap for weld connection. Hot sales ID size included 40mm 45mm 51mm 57mm and 63mm. Overal length available at 100mm, 200mm and 250mm etc.
As clients request, we can supply single layer bellow and double layer bellow. The latter will be higher cost than the former.
Exhaust flexible pipe is installed in the exhaust pipe between the engine exhaust branch pipe and the muffler, which makes theconnection of the entire exhaust system flexible and plays a role in reducing noise. Easy to install and extend the life of exhaust noise reduction system. Mainly used for light trucks, small passenger cars and buses. The structure is a double-layer corrugated pipe covered with a steel wire mesh sleeve, and the two ends are a straight edge segment outer snap ring structure. In order to improve the noise reduction effect, an expansion joint or mesh sleeve can be installed in the bellows.
Model of exhaust flex pipes
| Discription | Flexible Bellow Pipe | Main market | Africa, Middle-east country, Indonesia, South-east countries, Pakistan, North America, South America |
| Inside diameter inch | 1 1/2", 1 3/4" , 2", 2 1/2", | Inside daimeter metric | 40mmm 45mm 51mm 60mm 63mm |
|
Overall length in inch
|
4" 6" 8" 10 " 12" 14" | Overall length in metric | 100mm 150mm 200mm 250mm 300mm etc |
| Flex pipe Material | Stainless steel 304 201 | Joint Cap Material | Aluminized steel / stainless steel |
| Car Make | Universal | Application | Exhaust pipe of various of car, bus, truck, and so on. |
| Packing | Plastic bag and seaworthy box | Package Quantity | 1 pcs |
| Brand | YP | Place of Origin | Tianjin, China |
| Certificate | ISO | Warranty | One Year |
Main market: Africa(Libya, Egypt), Middle-east country (UAE, Saudi Arabic, Syria, Lebanon ), USA, European market
Specification of available exhaust flexible pipe:
|
Hot sales flexible pipe sizes
|
|
| With extension pipe | Without extension pipe |
| ID 45 x 100 x 200mm | ID 45 x 100mm |
| ID 45 x 150 x 250mm | ID 45 x 200mm |
| ID 51 x 100 x 200mm | ID 51 x 200mm |
| ID 51 x 200 x 300mm | ID 51 x 150mm |
| ID 57 x 150 x 250mm | ID 57 x 200mm |
| ID 57 x 200 x 300mm | ID 57 x 150mm |
| ID 60 x 150 x 250mm | ID 60 x 250mm |
| ID 60 x 250 x 350mm. | ID 65 x 250mm |
Application of exhaust flexible pipe:
The flexible bellow pipe is an important part of car exhaust system. When you accelerate, The car’s engine moves back and forth on rubber engine mounts. The flexible pipe allows for flexibility in your exhaust system, preventing the engine’s movement and vibrations from damaging and cracking the exhaust pipe.

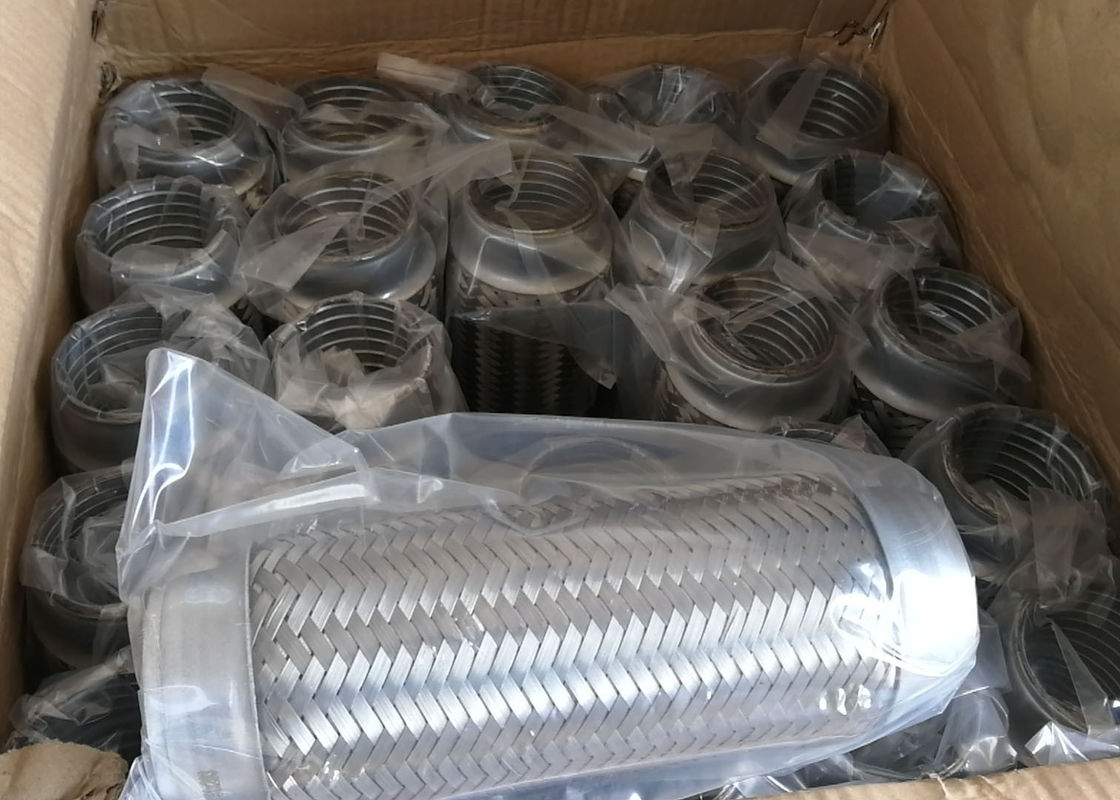

Packaging of exhaust flexible pipe:
25pcs per carton. film bag for each product. Mark as request.
Our warehouse:
FAQ
1. Q: How about the payment terms?
T/T 100% for order value less than $3000. Otherwise, 30% deposit in advance, the balance against the copy of B/L. It can be also discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 100,00 pcs per month. Normally, 5-8 days if stocks available.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for your quality checking. But the freight fee is in buyer side.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
