Product Details:
|
| Structure: | T Bolt V Band | Material: | Stainless Steel 304 |
|---|---|---|---|
| Name: | Exhaust V Band Clamp | Standard Or Nonstandard: | Standard |
| Type: | V Band Clamp | Size: | 1.5~6 Inches |
| Color: | Silver | OEM: | Available |
| Model: | Auto Exhaust Clamp | Application: | Pipe Connection |
| High Light: | 3 inch exhaust v band clamp,custom 3 inch exhaust v band clamp,3 exhaust v band clamp |
||
Custom Exhaust V Band Clamp with Male and Female Flange Kit
Product Description:
The high corrosion resistant 304 stainless steel make the v band clamps accept extreme environmental conditions.
Available as individual pieces with or without flange or 2 pieces as requirement.
Popular sizes of the v band clamps are in OD 1.5 inch, 1.75 inch, 2.0 inch, 2.25 inch, 2.5 inch, 2.75 inch, 3.0 inch, 3.25 inch, 3.5 inch, 4.0 inch 5.0 inch and 6.0inch.
V-Band Clamps are engineered and designed for heavy duty trucks, automotive, the unique design makes them a perfect solution for decreased emissions.
Applications of Exhaust V Band Clamp :
|
|
|
|
|
|
|
|
|
|
|
Sizes :
We offer custom sizing of the v band clamps, we can manufacture them in many different thickness and width band and various bolt and nut combinations to fit your exact applications.
|
Item |
Material |
Size |
Flange ID(mm) |
Bandwidth |
Screw |
|
Auto V-Band Clamp |
High strength |
2.0' |
51.6 |
19 |
M6 |
| Auto V-Band Clamp |
High strength |
2.25' |
57.9 |
19 |
M6 |
| Auto V-Band Clamp |
High strength |
2.5' |
64.3 |
19 |
M6 |
| Auto V-Band Clamp |
High strength |
2.75' |
70.6 |
19 |
M6 |
| Auto V-Band Clamp |
High strength |
3.0' |
77 |
25 |
M8 |
| Auto V-Band Clamp |
High strength |
3.25' |
83.3 |
25 |
M8 |
| Auto V-Band Clamp |
High strength |
3.5' |
89.7 |
25 |
M8 |
| Auto V-Band Clamp |
High strength |
4.0' |
102.4 |
25 |
M8 |
| Auto V-Band Clamp |
High strength |
5.0' |
127.8 |
25 |
M8 |
Features of Exhaust V Band Clamp:
1.Stainless steel construction resist rust and corrosion;
2.Provides a rigid and secure connection between pipes
3.Quick release design (or with bolt nut )makes the connection easy
4.Wide applications

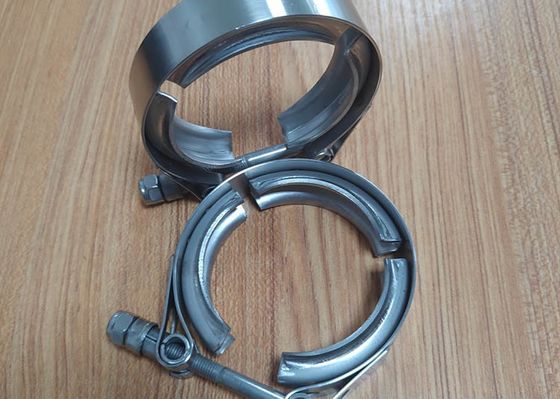

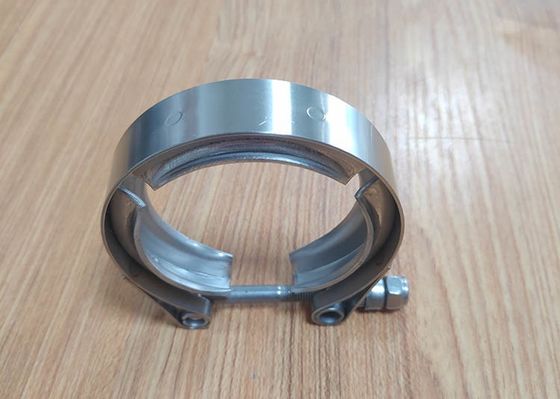

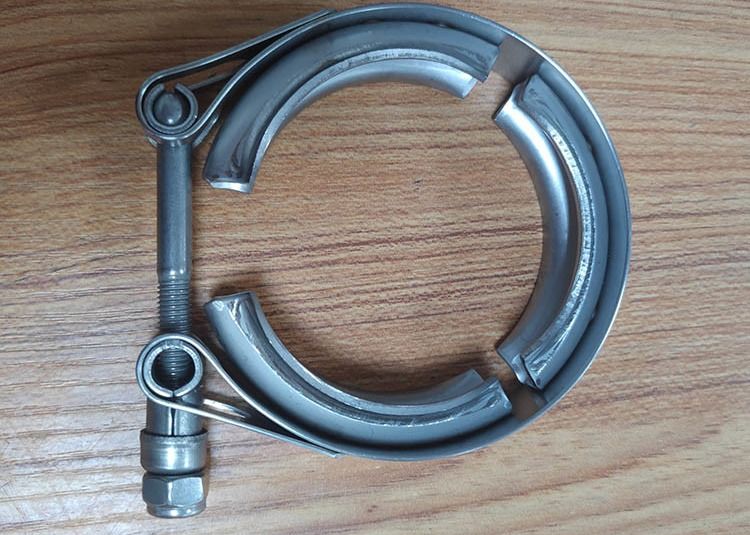

Pictures of Exhaust V Band Clamp

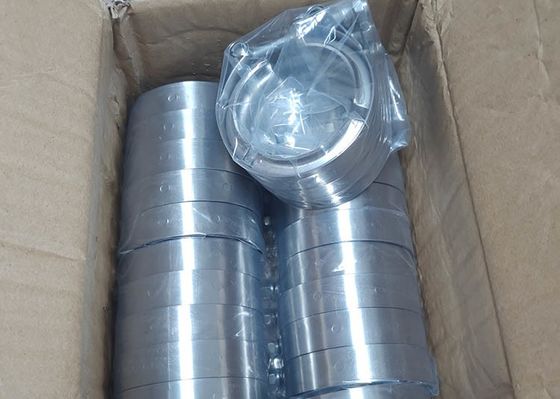

Packing and Shipping of Exhaust V Band Clamp:
5pcs / 10pcs into a plastic bag and then into cartons,single plastic packing is also available, but extra cost will be added into the unit price.
