Product Details:
|
| Material: | Stainless Steel | Structure: | Quick Release Latch |
|---|---|---|---|
| Usage: | Pipe Clamp | Standard Or Nonstandard: | Standard |
| Type: | V Band Clamp | Size: | 1.5~6 Inches |
| Color: | Silver | OEM: | Available |
| Model: | Auto Exhaust Clamp | Application: | Pipe Connection |
| Highlight: | quick release 3 v band clamp,auto exhaust 3 v band clamp,3 stainless v band clamp |
||
Stainless Steel Auto Exhaust Quick Release 3 inch V Band Clamps
Product Description:
Our premium V-Band Clamps and flanges are made of high-quality stainless steel 304 or 316L material with high strength, reliability, and corrosion resistance ,has a shining surface and good welding. The inside interlocking stainless steel flange with much deeper outside , ensuring a secure and tight fit that are able to withstand high pressures.
We offer custom sizing of the v band clamps, we can manufacture them in many different thickness and width band and various bolt and nut combinations to fit your exact applications.
Features of 3 inch V Band Clamps:
Stainless steel construction resist rust and corrosion;
Provides a rigid and secure connection between pipes
Quick release design (or with bolt nut )makes the connection easy
Sizes:
|
Item |
Material |
Size |
Flange ID(mm) |
Bandwidth |
Screw |
|
Auto V-Band Clamp |
High strength |
2.0' |
51.6 |
19 |
M6 |
| Auto V-Band Clamp |
High strength |
2.25' |
57.9 |
19 |
M6 |
| Auto V-Band Clamp |
High strength |
2.5' |
64.3 |
19 |
M6 |
| Auto V-Band Clamp |
High strength |
2.75' |
70.6 |
19 |
M6 |
| Auto V-Band Clamp |
High strength |
3.0' |
77 |
25 |
M8 |
| Auto V-Band Clamp |
High strength |
3.25' |
83.3 |
25 |
M8 |
| Auto V-Band Clamp |
High strength |
3.5' |
89.7 |
25 |
M8 |
| Auto V-Band Clamp |
High strength |
4.0' |
102.4 |
25 |
M8 |
| Auto V-Band Clamp |
High strength |
5.0' |
127.8 |
25 |
M8 |

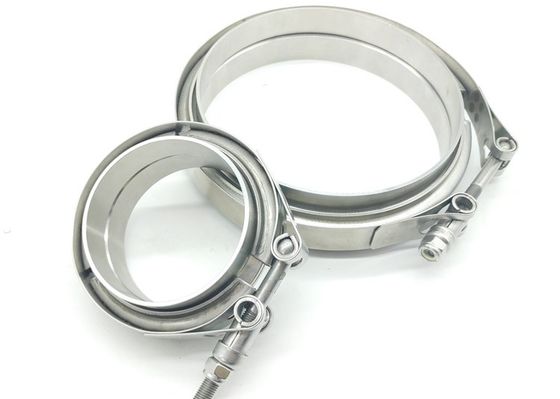

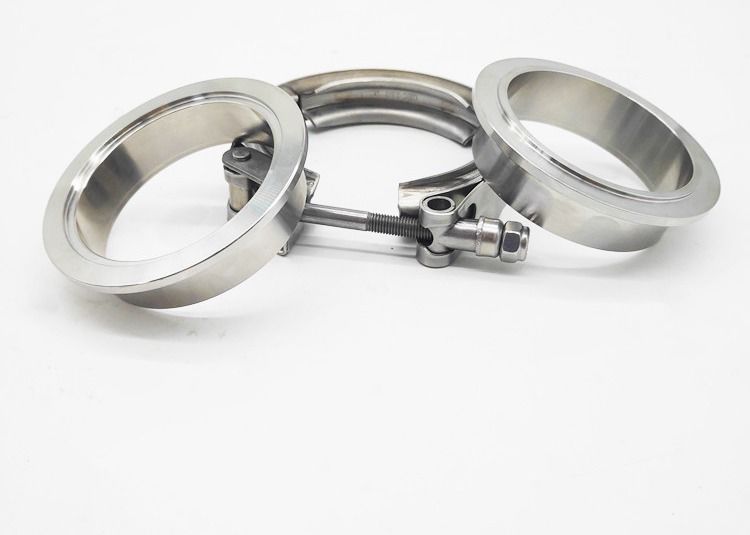

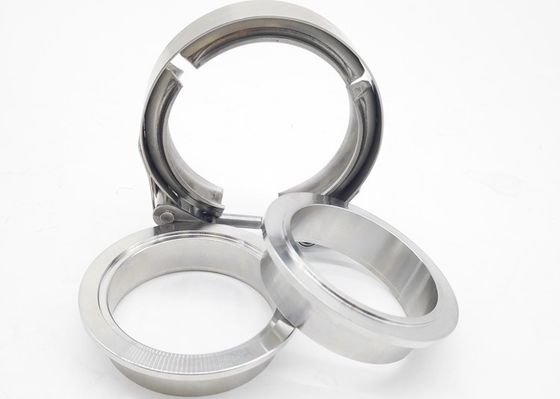

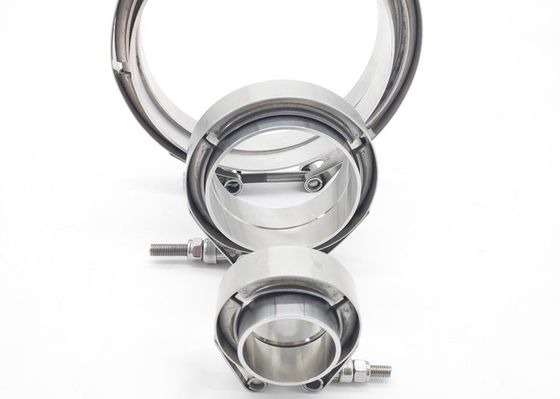

Pictures of 3 inch V Band Clamps
How 3 inch V Band Clamps Work ?
3 inch V-band clamps have proved themselves in racing applications from the Indianapolis 500 to Bonneville land speed automobiles ending up being the favored connection for many turbo-housings. They are an exceptional choice for any exhaust system.As torque is related to the nut of the coupling, the retainer applies an inward radial pressure compressing the flange with each other. Unlike bolted flanges, the retainer uses a uniform and equivalent closing force around the whole area of the flange throughout and after tightening up.
Other Popular Auto Clamps:
FAQ:
1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. What kind of auto parts we provide?
We have exhaust muffler, exhaust pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories for your choose.
3. How about the warranty ?
We have 1 year warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
