Payment & Shipping Terms:
|Product Name:||Stainless Steel Flexible Joint Flex Bellows Auto Exhaust Muffler Flex Pipe||Tube Materials:||Stainless Steel 201 / 202 / 304 / 409|
|Inside Diameter:||1-1/2", 1-3/4, 2", 2-1/4", 2-1/2", 3", 4" Or Oem Size||Metric ID:||38mm, 45mm, 51mm 63.5mm, 57mm 89mm 102mm Etc.|
|Body Lengh:||4" 6" 8" 10" Or As Customer's Request||Joint Cap Materials:||Stainless Steel Or Aluminized Steel|
|Structure:||Bellow Tube + Internal Wire Braid + External Wire Braid + Extension Tube||Application:||Truck, Bus, Off-road, Frieght Liner Etc|
|Feature:||High Flexibitlity And No Smuggling||Package:||Plastic Bag + Carton + Woven Bag|
id45mm stainless steel exhaust flex pipe,
id45mm ss202 exhaust flex pipe,

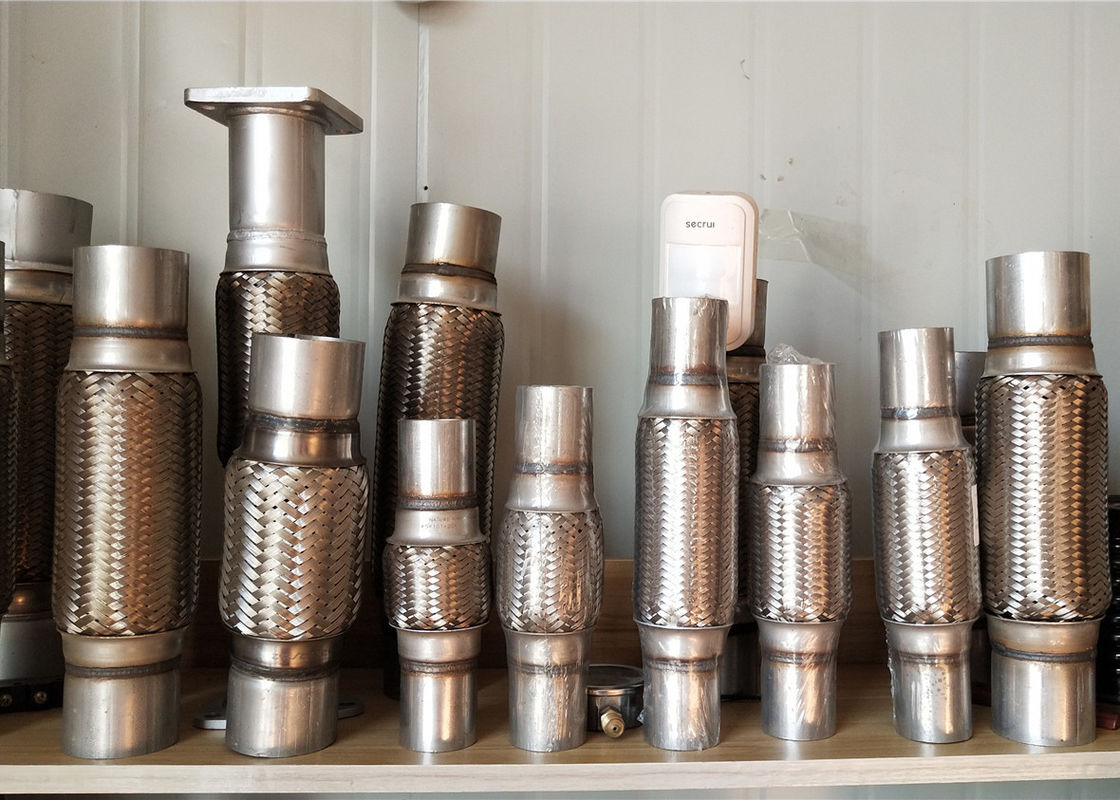

Muffler Stainless Steel Exhaust Flex Pipe
Exhaust muffler flex pipe consists of four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow or sometimes one layer as request, also made of stainless steel. The necks can be aluminized or stainless steel , we weld the extension tube on the pipe, so it'll be easier for customer to install it after getting it.
Brief introduction of exhaust muffler flex pipe:
Stainless Steel 201 / 202 / / 304 / 409
Bellows + Outer Braid + Nipple/ extension tube
Bellows + inner braided liner + external braided liner,
Bellows + interlock liner + external wire braided ,
Bellow + wire mesh
Bubble bag + Carton + Woven bag, particular packaging can be negoiated
1-1/2", 1-3/4, 2", 2-1/4", 2-1/2", 3", 4" Or Oem size
38mm, 45mm, 51mm 63.5mm, 57mm 89mm 102mm etc.
|Extension pipe thickness||
1.0mm , 1.5mm, 2mm
High flexibility and no smuggling
EXW , FOB , CIF , C&F
|Application / Usage||
Tuck, buses, off-road, auto exhaust system like engine, muffler, turbos, waste-gates, blow-off Valves, industrial equipment etc.
Packing and delivery of muffler flex pipe
Plastic bag + seaworthy carton
Lead time: 5-8 days if stocks available, otherwise depends on the purchased quantity.
