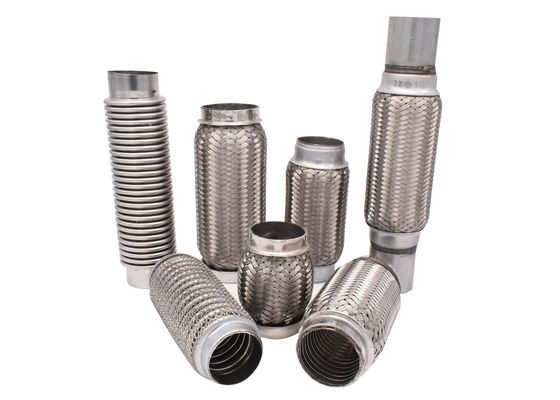

Mufflers Double Braided Stainless Steel Exhaust Flex Pipe

Mufflers Double Braided Stainless Steel Exhaust Flex Pipe
Mufflers Double Braided Stainless Steel Exhaust Flex Pipe Mufflers Double Braided Stainless Steel Exhaust Flex Pipe Mufflers Double Braided Stainless Steel Exhaust Flex Pipe

Large Image :  Mufflers Double Braided Stainless Steel Exhaust Flex Pipe

Product Details:
Place of Origin: CHINA
Brand Name: YP
Certification: ISO
Model Number: YPEXF-200
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD 1.8~2.0 PER PIECE
Packaging Details: plastic bag+ carton + woven bag
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T Western Union
Supply Ability: 100000 pieces per Month
Detailed Product Description
Product Name: Mufflers Flex Pipe Double Braided Stainless Steel Flex Exhaust Pipe Type: Exhaust Flex Pipe
Inside Diamter: 1-1/2", 1-3/4",2", 2-1/4", 2-1/2",3" 4" Etc. Pipe Length: 4" 6" 8" 10" As Request
Bellow Materials: Stainless Steel 304 / 201/ 202 /409 Cap Materials: Stainless Steel 304 Or Aluminized Steel
Structure: Bellows + Inner Braid + Out Braid + Nipple Application: Auto Exhaust System
Advantage: Flexible And Durable Package: Plastic Bag + Carton + Woven Bag
High Light:

mufflers stainless steel exhaust flex pipe

,

braided flexible auto exhaust pipe

,

braided stainless steel exhaust flex pipe

Product description of flex exhuast pipe





Exhaust flex couplings are stainless steel expansion joints designed for engine exhaust. They're constructed with 2-ply bellows and designed with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks. The flex pipes are offered in a variety of lengths, diameters, and attachment styles.





Mufflers Flex Pipe Double Braided Stainless Steel Flex Exhaust Pipe



  • Bellow materials:
Stainless steel 301 201 202 409 , thickness between 0.25-0.30mm
  • Braid and interlock:
Stainless steel 304
  • Collars(cap):
Stainless steel or aluminized steel
  • Nippe(extension pipe):
Stainless steel or aluminized steel
  • ID(inside diameter):
1-1/2", 1-3/4",2", 2-1/4", 2-1/2",3" 4" or OEM
  • Structures



Bellow + outer braid liner; bellow + inner braid liner + out braid liner;

Bellow + interlock liner + out braid liner;

Bellow + inner braid liner + outer wire mesh ;



  • Application
Installed between engine and muffler
  • Features:



-1. Suitable for a wide range of the tail pipe link.
-2. We can make parts with a high degree of flexibility.
-3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption.
-4. This product is used in exhaust system and high-and low-temperature.
-5. It can decrease engine noise and vibration.



  • Market
North Africa, The Middle east country, Europe, North America, Southeast Asia country etc.





Specification of flex exhaust pipe:



Common sizes are as follows, customizable sizes are available according to drawing or samples.



Mufflers Double Braided Stainless Steel Exhaust Flex Pipe 0



Diameter

(I.D.)

Pipe Length

Overall Length

(OAL)

Diameter

(I.D.)

Pipe Length

Overall Length

(OAL)

Extensions
1-1/2" 4" 4" 1-1/2" 4" 8" 2"
1-1/2" 6" 6" 1-1/2" 6" 10" 2"
1-1/2" 8" 8" 1-1/2" 8 12" 2"
1-1/2" 10" 10" 1-1/2" 10" 14” 2"
1-3/4" 4" 4" 1-3/4" 4" 8" 2"
1-3/4" 6" 6" 1-3/4" 6" 10" 2"
1-3/4" 8" 8" 1-3/4" 8" 12" 2"
1-3/4" 10" 10" 1-3/4" 10" 14" 2"
1-3/4" 12" 12" 1-3/4" 12" 16" 2"
2" 4" 4" 2" 4" 8" 2"
2" 6" 6" 2" 6" 10" 2"
2" 8" 8" 2" 8" 12" 2"
2" 10" 10" 2" 10" 14" 2"
2" 12" 12" 2" 12" 16" 2"
2-1/4" 4" 4" 2-1/4" 4" 8" 2"
2-1/4" 6" 6" 2-1/4" 6" 10" 2"
2-1/4" 8" 8" 2-1/4" 8" 12" 2"
2-1/4" 10" 10" 2-1/4" 10" 14" 2"
2-1/4" 12" 12" 2-1/4" 12" 16" 2"
2-1/2" 4" 4" 2-1/2" 4" 8" 2"
2-1/2" 6" 6" 2-1/2" 6" 10" 2"
2-1/2" 8" 8" 2-1/2" 8" 12" 2"
2-1/2" 10" 10" 2-1/2" 10" 14" 2"
2-1/2" 12" 12" 2-1/2" 12" 16" 2"
3" 4" 4" 3" 4" 8" 2"
3" 6" 6" 3" 6" 10" 2"
3" 8" 8" 3" 8" 12" 2"
3" 10" 10" 3" 10" 14" 2"
3" 12" 12" 3" 12" 16" 2"
4" 4" 4" 4" 4" 8" 2"
4" 6" 6" 4" 6" 10" 2"
4" 8" 8" 4" 8" 12" 2"
4" 10" 10" 4" 10" 14" 2"



Appication of flex exhaust pipe:



Bellows can be used in the exhaust system of large vehicles such as trucks, buses, freightliner etc., for the high temperature portion of the engine exhaust manifold. The exhaust bellows is installed in the exhaust pipe between the engine exhaust manifold and the mufller, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of exhaust muffler system.



Mufflers Double Braided Stainless Steel Exhaust Flex Pipe 1



Keyword: exhaust flex pipe, exhaust corrugated bellow pipe



Structures choice of flex exhaust pipe:



Mufflers Double Braided Stainless Steel Exhaust Flex Pipe 2

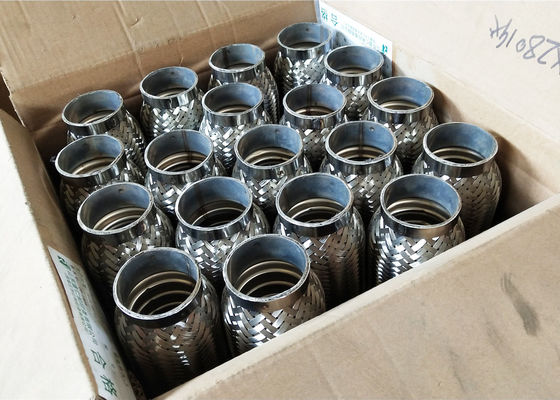

Packaging and Delivery of flex exhaust pipe:



Fast delivery: in 5-8 days

Lead time for new production: No more than 30 days

Shipping terms: EXW FOB CIF

Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.



Mufflers Double Braided Stainless Steel Exhaust Flex Pipe 3

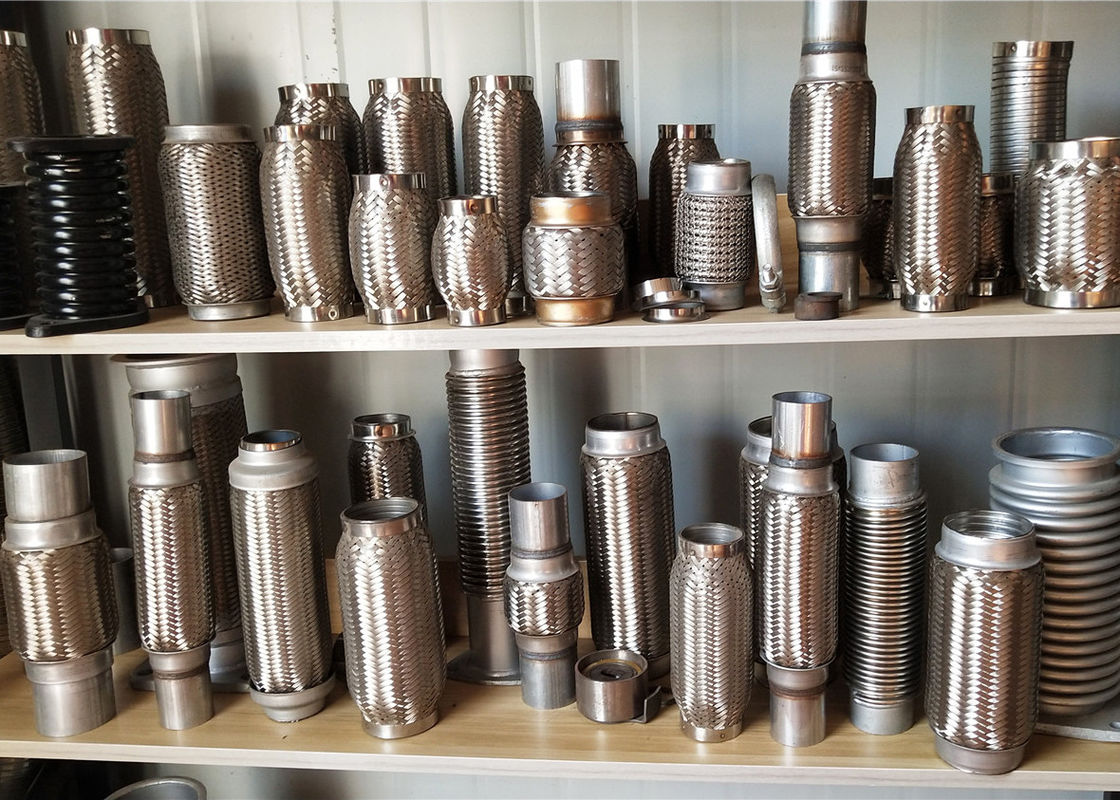

We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.

Mufflers Double Braided Stainless Steel Exhaust Flex Pipe 4
