Standard Braided 2 Inch Exhaust Flex Coupling

Standard Braided 2 Inch Exhaust Flex Coupling

2 inch exhaust flex coupling

Braided Exhaust Flex Coupling

Braided flexible exhaust pipe couplings

Place of Origin:

China

CONTACT US
Request A Quote
Product Details
Product Name:
Standard Flex Coupling (Braided) 304 Stainless Steel Flexible Pipe
Tube Materials:
Stainless Steel 201 / 304 / 409
Inside Diamter:
2"
Body Lengh:
6" Or As Customer's Request
Joint Cap Materials:
Stainless Steel Or Aluminized Steel
Structure:
Bellow Tube + Internal Wire Braid + External Wire Braid
Application:
Truck, Bus, Off-road, Frieght Liner Etc
Feature:
Duarable
Package:
Plastic Bag + Carton + Woven Bag
Payment & Shipping Terms
Minimum Order Quantity
100
Price
USD1.8~1.9 PER PIECE
Packaging Details
Film bag + carton + sea worthy bag
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T WESTERN UNION MONEYGRAM
Supply Ability
10000 Pieces Per Month
Product Description

Standard Flex Coupling (Braided) 304 Stainless Steel Flexible Pipe

Flexible couplings are engineered to isolate vibration generated by your vehicle's engine, thereby relieving stress on the exhaust system. Flex couplings reduce premature cracking of manifolds and downpipes and help extend the life of other components. This coupling features a braided inner liner that protects the bellows from premature failure and is ideal for eliminating exhaust "whistle".





Materials:





Stainless steel 304,201,202 409 etc.





Cap materials



Aluminum steel or stainless steel



Structure choice



Standard Braided 2 Inch Exhaust Flex Coupling 0Bellows+Outer Braid+Nipple extension, Bellows + inner braided liner + external braided liner, bellows + interloc liner + external wire braided , bellow + wire mesh



Features

1.Automobile exhaust system component

2. Installed between engine and muffler

3. decrease vibration and engine noise

4.To compensate displacement and installation tolerances

5. Smooth inner surface to ensure waste gas to convey the back part

6.To Bear load



Application:

Truck, buses, off-road, industrial equipment etc.

Specification

Inner Diameter (ID) Flex Length(L) With nipple Overall Length(L)
1-3/4” (45mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
48mm 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2”(50.8mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
54mm 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2-1/4”(57.2mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
2-1/2”(63.5mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
3”(76.2mm) 4”(102mm) 8”(203mm)
6”(152mm) 10”(254mm)
8”(203mm) 12”(305mm)
10”(254mm) 14”(356mm)
Note: Customized size are available



Packing and delivery:



Plastic bag + seaworthy carton

Lead time: 5-8 days if stocks available, otherwise depends on the purchased quantity.

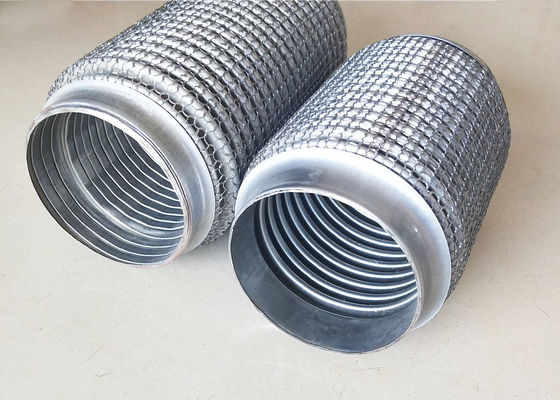

Standard Braided 2 Inch Exhaust Flex Coupling 1



About us:



As a reliable partner and aftermarket supplier, we offer advanced products and have large stock. Our product are sold to many countries,have been exported to North America,Western Europe,Southeast Asia,South America,Northern Europe,Mid East,Southern Europe,Africa and many other countries. We would like to cooperate with global customers and make the good protection project in world market.

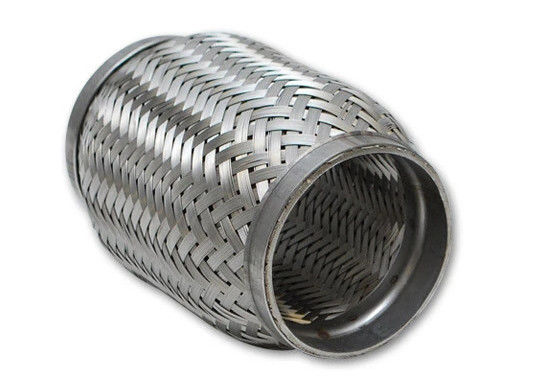

Standard Braided 2 Inch Exhaust Flex Coupling 2

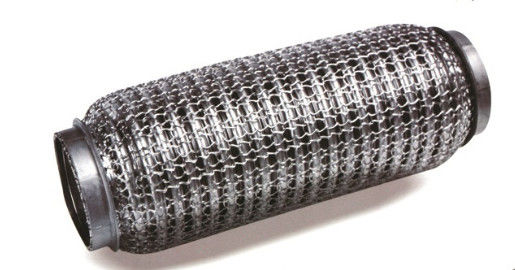

Standard Braided 2 Inch Exhaust Flex Coupling 3



Contact me:

It's our great honor to do services for you! Any requirements or question,welcome to "Send" us an e-mail.

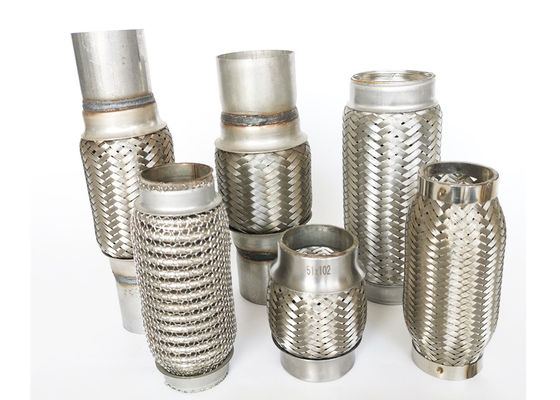

Standard Braided 2 Inch Exhaust Flex Coupling 4
