Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set

Recommedation is good. Reception is professional. Wish to place more orders with flexible exhaust pipe.

—— Rodrigo Favaro

Good company with nice service and high quality for exhaust muffler.

—— John Hermans

Thanks for your good after-sale service. Popular design for the exhaust pipe and muffler system.

—— Aidyn Hadiev

Good support. High quality of exhaust clamps. We'll reorder soon.

—— OAKANTSE Lucas

I'm Online Chat Now

Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set

Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set
Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set

Large Image :  Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: EXRC025
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD2.5~3.0
Packaging Details: Plastic bag + seaworthy carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product: Stainless Steel Heavy Duty Exhaust Rain Cap For Power Generator Canopy Set Color: Silver
Dimension: 2" 2 1/2" 2 3/4" 3" 3/1/4" 3 1/2" 4" 4 1/4" 3/4" 5" 6" Etc Materials: Stainless Steel 304
Surface Finish: Mirror Polished Usage: Exhaust Stack Pipe Cap / Weather Cap
Block Materials: Steel / Bakelite Application: Trucks, Farm And Off-road Vehicles
MOQ: 100 Package: Carton With Pallet
High Light:

Galvanized exhaust rain cap

,

exhaust rain cap Galvanized

,

2 3/16" Stainless Steel Exhaust Parts

Product description:



Stainless Steel Heavy Duty Exhaust Rain Cap For Power Generator Canopy Set



Features
(1) Reasonable design
(2) Easy Installation
(3) Different Sizes Available
(4) Strict Inspection
(5)Widely Used in Power Generator set canopy, engine exhaust pipe.



Material: Stainless Steel 304 or carton steel
Finishing: Mirror polished , Zinc plated, Black Powder Coated, Chrome plated
MOQ: 100 pcs per size
Port: Tianjin port in China
Sample: Free sample available, freight covered by customer
Packing: PP bag+Carton+Pallet
Payment Terms: T/T,L/C at sight,Western Union,Money Gram
Brand: N/M or customer's brand
Delivery: 5-8 work days after receipt of payment

Sizes 2" 2 1/4" 2 1/2" 2 3/4" 3" 3 1/4" 3 1/2" 3 3/4" 4" 4 1/2" 4 3/4" 5" 5 1/4" 5 3/4" 6" etc

Usage:



Help prevent dirt, dust, debris, snow, and rain from falling into exposed stack pipes. They are designed to open to full vertical position when pressure is inside the stack. They also close instantly when the exhaust pressure stops. Caps can help allow engines to breathe freely while reducing the threat of damage. They are ideal for trucks, farm and off-road vehicles, and equipment with vertical exhaust stack systems.

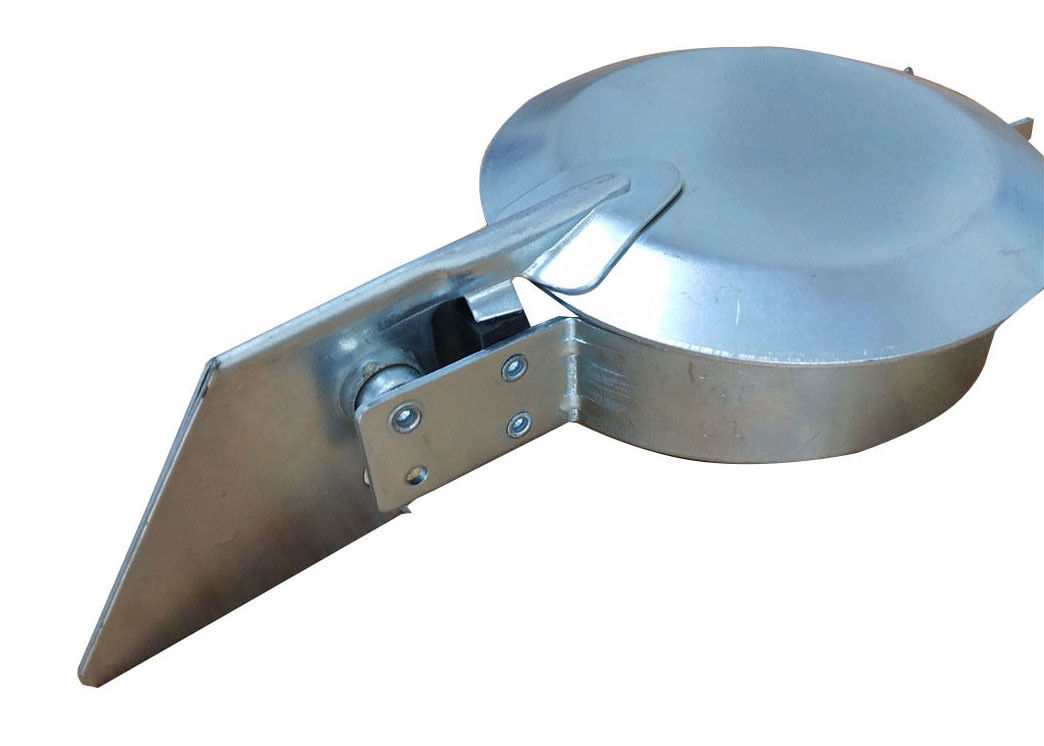

Galvanized exhaust rain cap



Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set 0

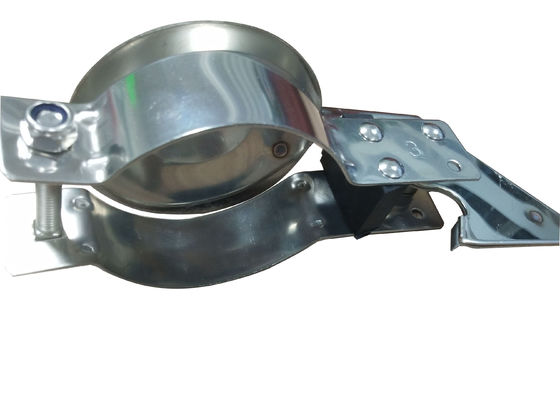

Stainless steel exhaust weather cap



Rain Cap Stainless Steel Exhaust Parts For Power Generator Canopy Set 1





Specification sheet



Item Number Min  Exhaust OD Max Exhuast OD Color
EXRC020 2" 2 3/16"

Silver Gray Black etc

EXRC214 2 1/4" 2 7/16"
EXRC212 2 1/2" 2 11/16"
EXRC234 2 3/4" 2 15/16"
EXRC030 3" 3 3/16"
EXRC314 3 1/4" 3 7/16"
EXRC312 3 1/2" 3 11/16"
EXRC334 3 3/4" 3 15/16"
EXRC040 4" 4 3/16"
EXRC414 4 1/4" 4 7/16"
EXRC412 4 1/2" 4 11/16"
EXRC434 4 3/4" 4 15/16"
EXRC050 5" 5 3/16"
EXRC514 5 1/4" 5 7/16"
EXRC512 5 1/2" 5 11/16"
EXRC534 5 3/4" 5 15/16"
EXRC060 6" 6 3/16"
OEM Availabe Available Available





How do you select the material or finish of the rain cap?





There are several deciding factors on the type of rain cap finish you should select.



Price



If you're looking for the most economical type of rain flapper, choose the painted rain caps. The base material is carbon steel and paint is relatively inexpensive.



Durability



Will the rain cap be exposed to a corrosive environment such as a chemical plant? Or be see operation on a continuous basis such as a primary gen set?Consider a stainless steel rain cap as its base construction of 304 or 316 stainless steel can withstand a large degree of chemicals and operating conditions.



Exhaust temperature



Natural gas engines can have exhaust temperatures exceeding 1200 degrees Fahrenheit. In these applications, consider using a stainless steel rain cap made of 304 or 316. Aluminum rain caps can also be used on higher temperature exhaust systems of 1000 degrees Fahrenheit intermittent. Carbon steel, painted rain caps can operate at exhaust temperature up to 800 degrees Fahrenheit intermittently. The paint on these exhaust flappers are designed for higher operating temperatures. The chrome plating on the chrome rain caps can burn off at higher exhaust temperatures (i.e. above 500 degree Fahrenheit).



Aesthetics:



Rain cap going onto a show tractor? Go with a high luster finish such as chrome. A stainless steel rain cap can also be eye pleasing, but doesn't have the high luster finish of a chrome rain cap.



Physical properties:



Have an application that requires light weight material? Or need a rain cap that has a short counter weight dimension? Aluminum rain caps are lighter weight than their steel counterparts. And because of the lighter weight, the amount of material required for counter balance the lid is also smaller, leading to a shorter overall foot print.





Packaging and delivery:

  • Packaging :Carton with pallet or Wooden crate
  • In 7 days if dimension and quantitly available in stocks
  • Usually 25-30 days for new mass production.
  • Delivery method :By sea, By air, by Train, Ay Express. Any way customer prefered.
