Wire Braided 2" X 4" Ss Expansion Joint

Wire Braided 2" X 4" Ss Expansion Joint
Wire Braided 2" X 4" Ss Expansion Joint Wire Braided 2" X 4" Ss Expansion Joint Wire Braided 2" X 4" Ss Expansion Joint

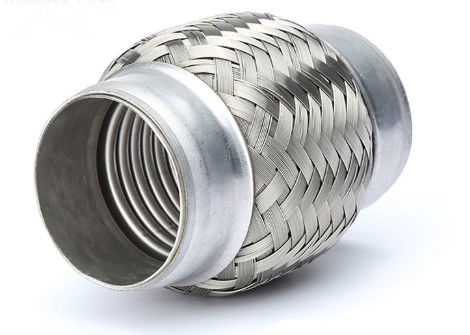

Large Image :  Wire Braided 2" X 4" Ss Expansion Joint

Product Details:
Place of Origin: CHINA
Brand Name: YP
Certification: ISO
Model Number: YPEXF-200
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 1.6~1.8 PER PIECE
Packaging Details: plastic bag+ carton + woven bag
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T Western Union
Supply Ability: 100000 pieces per Month
Detailed Product Description
Product Name: Wire Braided Stainless Steel Expansion Joints 2" X 4" For Engine Exhaust Application: Vehicle Exhaust System
Inside Diamter: 2" / 50.8 Mm Body Length:: 4" / 102 Mm Or As Request
Flex Pipe Materials: Stainless Steel 304 / 201 Flex Joints Materials: Stainless Steel 304 / 201 Or Aluminized Steel
Structure: Bellows + Wire Braided Inlet Attachment: Weld-on
Outlet Attachment: Weld-on Type: Exhaust Flex Pipe
Advantage: Flexible And Durable Package: Plastic Bag + Carton + Woven Bag
High Light:

2" X 4" Stainless Steel Expansion Joints

,

Braided ss Expansion Joints

,

Engine Exhaust ss expansion joint

Product description:



Wire Braided Stainless Steel Expansion Joints 2" X 4" For Engine Exhaust



Exhaust flex couplings are stainless steel expansion joints designed for engine exhaust. They're constructed with 2-ply bellows and designed with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks. The flex pipes are offered in a variety of lengths, diameters, and attachment styles.



  • Bellow materials: Stainless steel 301 201 202 409 , thickness between 0.25-0.30mm
  • Braid and interlock: Stainless steel 304
  • Collars(cap): Stainless steel or aluminized steel
  • Nippe(extension pipe): Stainless steel or aluminized steel
  • Keyword: exhaust flex pipe, exhuast flex tube, exhaust corrugated bellow pipe, exhaust flex coupling



Specification:

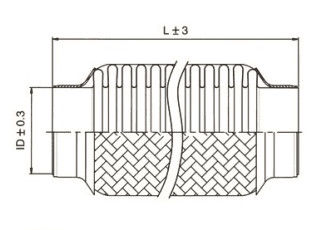

Wire Braided 2" X 4" Ss Expansion Joint 0



Diameter

(I.D.)

Pipe Length

Overall Length

(OAL)

Diameter

(I.D.)

Pipe Length

Overall Length

(OAL)

Extensions
1-1/2" 4" 4" 1-1/2" 4" 8" 2"
1-1/2" 6" 6" 1-1/2" 6" 10" 2"
1-1/2" 8" 8" 1-1/2" 8 12" 2"
1-1/2" 10" 10" 1-1/2" 10" 14” 2"
1-3/4" 4" 4" 1-3/4" 4" 8" 2"
1-3/4" 6" 6" 1-3/4" 6" 10" 2"
1-3/4" 8" 8" 1-3/4" 8" 12" 2"
1-3/4" 10" 10" 1-3/4" 10" 14" 2"
1-3/4" 12" 12" 1-3/4" 12" 16" 2"
2" 4" 4" 2" 4" 8" 2"
2" 6" 6" 2" 6" 10" 2"
2" 8" 8" 2" 8" 12" 2"
2" 10" 10" 2" 10" 14" 2"
2" 12" 12" 2" 12" 16" 2"
2-1/4" 4" 4" 2-1/4" 4" 8" 2"
2-1/4" 6" 6" 2-1/4" 6" 10" 2"
2-1/4" 8" 8" 2-1/4" 8" 12" 2"
2-1/4" 10" 10" 2-1/4" 10" 14" 2"
2-1/4" 12" 12" 2-1/4" 12" 16" 2"
2-1/2" 4" 4" 2-1/2" 4" 8" 2"
2-1/2" 6" 6" 2-1/2" 6" 10" 2"
2-1/2" 8" 8" 2-1/2" 8" 12" 2"
2-1/2" 10" 10" 2-1/2" 10" 14" 2"
2-1/2" 12" 12" 2-1/2" 12" 16" 2"
3" 4" 4" 3" 4" 8" 2"
3" 6" 6" 3" 6" 10" 2"
3" 8" 8" 3" 8" 12" 2"
3" 10" 10" 3" 10" 14" 2"
3" 12" 12" 3" 12" 16" 2"
4" 4" 4" 4" 4" 8" 2"
4" 6" 6" 4" 6" 10" 2"
4" 8" 8" 4" 8" 12" 2"
4" 10" 10" 4" 10" 14" 2"



Customized sizes are acceptable as drawing or samples.



Structures choice:



Wire Braided 2" X 4" Ss Expansion Joint 1



Appication:



Bellows can be used in the exhaust system of large vehicles such as trucks, buses, freightliner etc., for the high temperature portion of the engine exhaust manifold. The exhaust bellows is installed in the exhaust pipe between the engine exhaust manifold and the mufller, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of exhaust muffler system.



Wire Braided 2" X 4" Ss Expansion Joint 2



Packaging and Delivery:



Fast delivery: in 5-8 days

Lead time for new production: No more than 30 days

Shipping terms: EXW FOB CIF

Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.



Wire Braided 2" X 4" Ss Expansion Joint 3



We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
