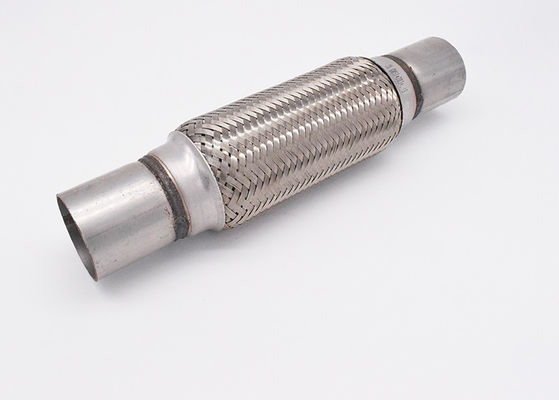

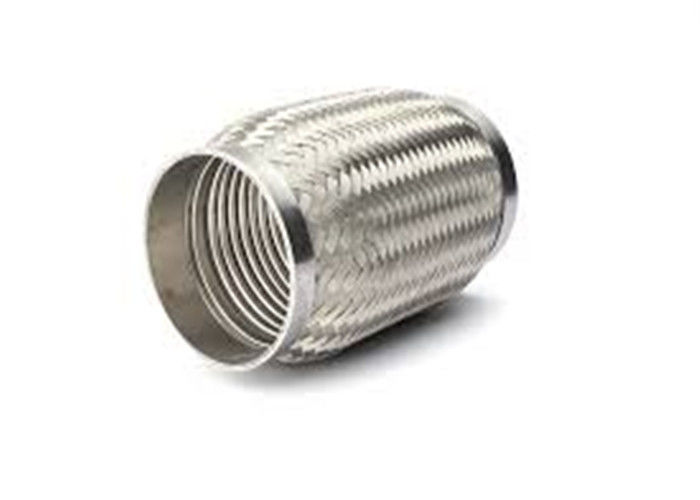

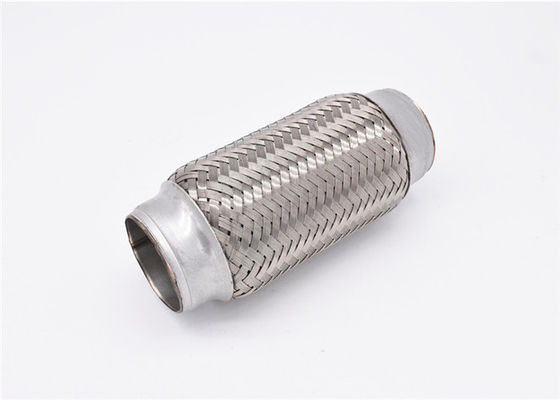

2 Inch X 10 Inch Ss409 Flexible Exhaust Pipe Couplings

2 Inch X 10 Inch Ss409 Flexible Exhaust Pipe Couplings

2x10 flexible exhaust pipe couplings

Ss409 Flexible Exhaust Pipe Couplings

Ss409 exhaust flex coupling

Place of Origin:

China

Certification:

ISO

CONTACT US
Request A Quote
Product Details
Product Name:
2 Inch X 10 Inch Stainless Steel 201 / 304 Bellows Exhaust Flex Coupling
Inside Diamter:
2" / 50.8 Mm
Bellow Materials:
Stainless Steel 304 / 201/ 202 /409
Cap Materials:
Stainless Steel 304 Or Aluminized Steel
Structure:
Bellows + Inner Braid + Out Braid + Nipple
Body Length::
10" / 254 Mm Or As Request
Application:
Vehicle Exhaust System
Type:
Exhaust Flex Pipe
Advantage:
Flexible And Durable
Package:
Plastic Bag + Carton + Woven Bag
Payment & Shipping Terms
Minimum Order Quantity
100
Price
USD 1.8~2.0 PER PIECE
Packaging Details
plastic bag+ carton + woven bag
Delivery Time
5-8 days if stocks available
Payment Terms
L/C T/T Western Union
Supply Ability
100000 pieces per Month
Product Description

Product description:



2 Inch X 10 Inch Stainless Steel 201 / 304 Bellows Exhaust Flex Coupling



Exhaust flex couplings are stainless steel expansion joints designed for engine exhaust. They're constructed with 2-ply bellows and designed with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks. The flex pipes are offered in a variety of lengths, diameters, and attachment styles.



  • Bellow materials: Stainless steel 301 201 202 409 , thickness between 0.25-0.30mm
  • Braid and interlock: Stainless steel 304
  • Collars(cap): Stainless steel or aluminized steel
  • Nippe(extension pipe): Stainless steel or aluminized steel



Specification:

Common sizes are as follows, customizable sizes are available according to drawing or samples.



2 Inch X 10 Inch Ss409 Flexible Exhaust Pipe Couplings 0



Diameter

(I.D.)

Pipe Length

Overall Length

(OAL)

Diameter

(I.D.)

Pipe Length

Overall Length

(OAL)

Extensions
1-1/2" 4" 4" 1-1/2" 4" 8" 2"
1-1/2" 6" 6" 1-1/2" 6" 10" 2"
1-1/2" 8" 8" 1-1/2" 8 12" 2"
1-1/2" 10" 10" 1-1/2" 10" 14” 2"
1-3/4" 4" 4" 1-3/4" 4" 8" 2"
1-3/4" 6" 6" 1-3/4" 6" 10" 2"
1-3/4" 8" 8" 1-3/4" 8" 12" 2"
1-3/4" 10" 10" 1-3/4" 10" 14" 2"
1-3/4" 12" 12" 1-3/4" 12" 16" 2"
2" 4" 4" 2" 4" 8" 2"
2" 6" 6" 2" 6" 10" 2"
2" 8" 8" 2" 8" 12" 2"
2" 10" 10" 2" 10" 14" 2"
2" 12" 12" 2" 12" 16" 2"
2-1/4" 4" 4" 2-1/4" 4" 8" 2"
2-1/4" 6" 6" 2-1/4" 6" 10" 2"
2-1/4" 8" 8" 2-1/4" 8" 12" 2"
2-1/4" 10" 10" 2-1/4" 10" 14" 2"
2-1/4" 12" 12" 2-1/4" 12" 16" 2"
2-1/2" 4" 4" 2-1/2" 4" 8" 2"
2-1/2" 6" 6" 2-1/2" 6" 10" 2"
2-1/2" 8" 8" 2-1/2" 8" 12" 2"
2-1/2" 10" 10" 2-1/2" 10" 14" 2"
2-1/2" 12" 12" 2-1/2" 12" 16" 2"
3" 4" 4" 3" 4" 8" 2"
3" 6" 6" 3" 6" 10" 2"
3" 8" 8" 3" 8" 12" 2"
3" 10" 10" 3" 10" 14" 2"
3" 12" 12" 3" 12" 16" 2"
4" 4" 4" 4" 4" 8" 2"
4" 6" 6" 4" 6" 10" 2"
4" 8" 8" 4" 8" 12" 2"
4" 10" 10" 4" 10" 14" 2"



Appication:



Bellows can be used in the exhaust system of large vehicles such as trucks, buses, freightliner etc., for the high temperature portion of the engine exhaust manifold. The exhaust bellows is installed in the exhaust pipe between the engine exhaust manifold and the mufller, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of exhaust muffler system.



2 Inch X 10 Inch Ss409 Flexible Exhaust Pipe Couplings 1



Keyword: exhaust flex pipe, exhaust corrugated bellow pipe



Structures choice:



2 Inch X 10 Inch Ss409 Flexible Exhaust Pipe Couplings 2



Packaging and Delivery:



Fast delivery: in 5-8 days

Lead time for new production: No more than 30 days

Shipping terms: EXW FOB CIF

Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.



2 Inch X 10 Inch Ss409 Flexible Exhaust Pipe Couplings 3



We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
