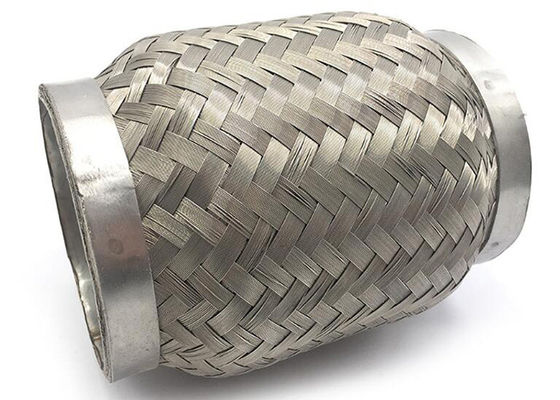

Vibration Absorb 1.2mm Braided Exhaust Flex Pipe Bellows
1.2mm braided exhaust flex pipe
,1.2mm exhaust pipe bellows
,Vibration Absorb braided exhaust flex pipe
Vibration Absorb Exhaust System Flexible Braided Bellows Flex Bellows Welded Pipe
Product Description:
The Flexible Exhaust Pipe Bellows is installed in the exhaust pipe between the engine exhaust manifold and the muffler, it is an essential part of any front wheel drive vehicle and on most all wheel drive vehicles.
Flex. Pipe protects your exhaust system from breakage and more noise. Without that extra flexibility , the rocking motion would crack the exhaust system and cause a loud leak.

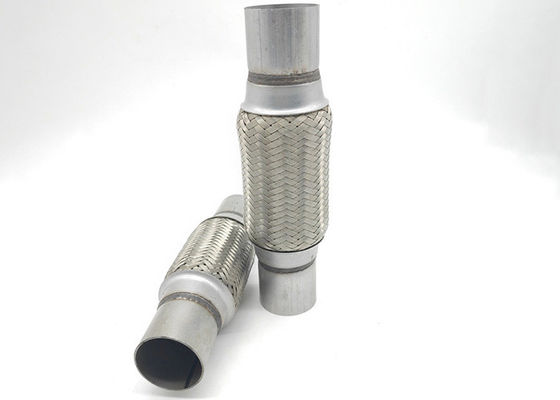

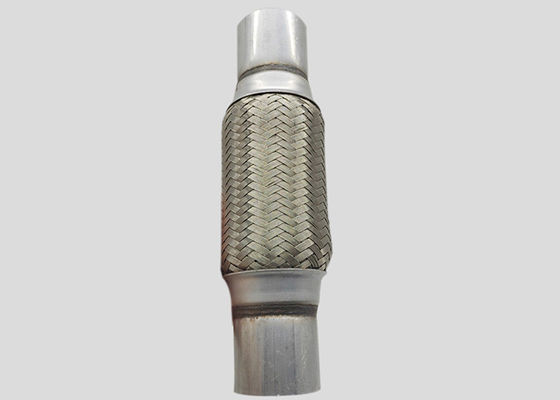

The above one is the type with welded extension tube, much convenient for customer to connect without extra welding.
Sizes of exhaust pipe:
Customized lengths and ID are available too.
| Nominal Inside Diameter I.D. |
Overall Length O/L |
Nominal Inside Diameter I.D. |
Overall Length O/L |
Nominal Inside Diameter I.D. |
Overall Length O/L |
| 1-3/4(45mm) | 4”(102mm) | 2-1/2”(63.5) | 4”(102mm) | 43mm | 120mm |
| 6”(152mm) | 6”(152mm) | 165mm | |||
| 8”(203mm) | 8”(203mm) | 180mm | |||
| 9”(230mm) | 9”(230mm) | 50mm | 120mm | ||
| 10”(254mm) | 10”(254mm) | 165mm | |||
| 11”(280mm) | 11”(280mm) | 54.5mm | 120mm | ||
| 12”(305mm) | 12”(305mm) | 150mm | |||
| 2”(51mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) | 180mm | |
| 6”(152mm) | 6”(152mm) | 200mm | |||
| 8”(203mm) | 8”(203mm) | 250mm | |||
| 9”(230mm) | 9”(230mm) | 60mm | 160mm | ||
| 10”(254mm) | 10”(254mm) | 200mm | |||
| 11”(280mm) | 11”(280mm) | 240mm | |||
| 12”(305mm) | 12”(305mm) | 65mm | 150mm | ||
| 2-1/4”(57.2mm) | 4”(102mm) | 3-1/2”(89mm) | 6”(152mm) | 200mm | |
| 6”(152mm) | 8”(203mm) | 70mm | 100mm | ||
| 8”(203mm) | 9”(230mm) | 120mm | |||
| 9”(230mm) | 10”(254mm) | 150mm | |||
| 10”(254mm) | 12”(305mm) | 200mm | |||
| 11”(280mm) |
Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125... |
||||
| 12”(305mm) | |||||
Types:
1st line, from left to right: outer braided flex pipe with bellow; double braided flex pipe, both inner and outer braided; outer braided with interlock liner

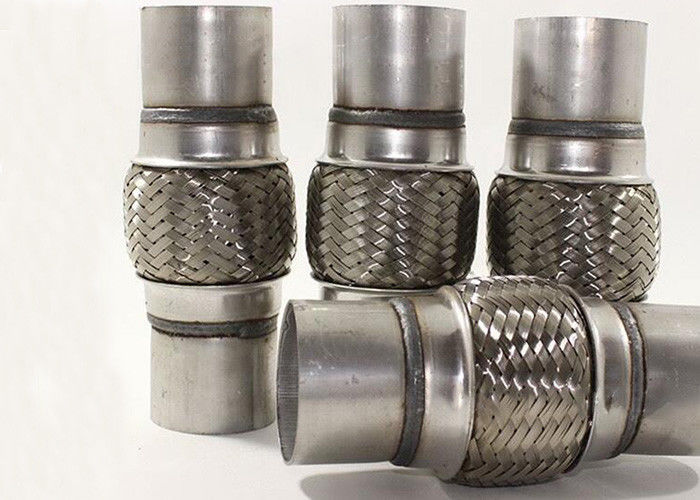

2nd line, from left to right: braided flex pipe with extension nipple ; outer wire meshed with bellow; outer wire meshed with interlock
Drawing of flex exhaust pipe:
Advantages:
- Easily installation. There is no need to remove the whole exhaust system. Only to cut out the failed exhaust flex pipe and install a new spare part using the welding method or clumps instead
- Cost-effective. Malfunctioning exhaust flex pipe can be easily replaced with a new one without the necessity to purchase the entire exhaust unit
- Applicable to universal Exhaust pipe
- Manufactured from stainless steel for durability and corrosion resistance
- Many styles and sizes available for your installation needs
Warehouse, Packing and Delivery
Usually it's 25pcs into a carton with protective bag , then into the wooden pallet
