Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp

Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp
Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp

Large Image :  Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YP-EXBC035
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.2~$1.5/PC FOB TIANJIN, CHINA
Packaging Details: Plastic bag + seaworthy carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Item: 2.25" Exhaust Muffler Clamp Band Stainless Steel Exhaust Sleeve Clamp Materials: Aluminized Steel Or T304 Stainless Steel
Inside Diameter: 2.25 Inch Height: 3.00 Inch
Structure: Butt Jointed Band Clamp MOQ: 10pcs
Application: Universal Reaction Block: Aluminum Steel
Fastener: 8.8 Grade
High Light:

SS304 2.25 exhaust sleeve clamp

,

57mm 2.25 Exhaust Sleeve Clamp

,

57mm 2.25 exhaust band clamp

2.25" Exhaust Muffler Clamp Band Stainless Steel Exhaust Sleeve Clamp





Item description:



Exhaust clamp band feature unitized construction which minimized part number complexity and maximizes material efficiency for reduced weight. Butt joint band clamps is a simple, effective way to connect exhaust system components such as pipes, mufflers and catalytic converters. Unique seal and high clamp loads are provided without distorting your exhaust components, allowing the flexibility to disassemble for service. This type of clamp is for connecting two pipes that have the same outside diameter.



  • The Butt Joint Exhaust Clamp is made in stainless steel 304 or Aluminized Steel
  • This 2.25" exhaust sleeve clamp is used for both sides of 2.25 inch OD pipes connection
  • Over 100 hours salt spray test to ensure the great performance in anti-corrosion
  • This sleeve clamp is tested to OE specifications of Torque & Clamping Retention
  • Full clamping area to create the best seal available without distorting pipe,muffler inlets, outlets, elbow joints, flex tubing and other system connections

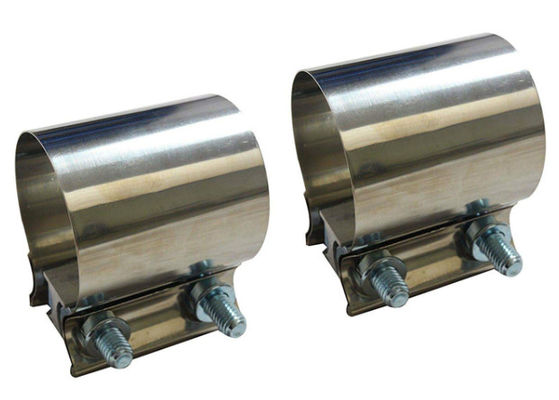

Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp 0



Dimension allowed:



MODEL NUMBER Dia(mm) Dia(in)
YP-EXFBC020 51 2"
YP-EXFBC225 57 2.25"
YP-EXFBC250 64 2.5“
YP-EXFBC275 70 2.75”
YP-EXFBC300 76 3“
YP-EXFBC350 89 3.5”
YP-EXFBC400 102 4“
YP-EXFBC450 114 4.5”
YP-EXFBC500 127 5“
YP-EXFBC600 152 6"





Features:

* Connections are serviceable and easy to disassemble
* Available in a wide range of diameters
* Exclusive reaction block provides a full 360 degree distribution of stretching forces; transfers bolt torque into clamp strength and an assured seal
* Unitized assembly; no loose hardware
* Slides into place, installs easily and reliably with only one assembly torque point
* High-strength fastener hardware with corrosion-resistant coating

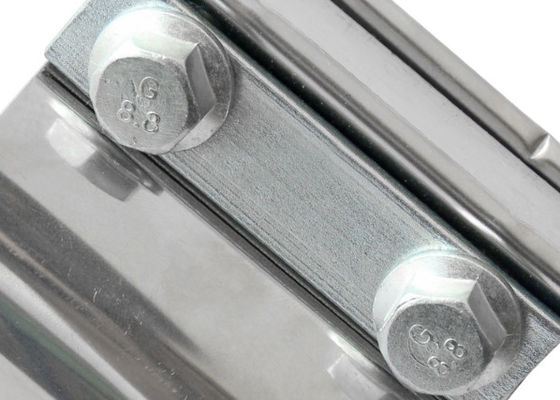

Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp 1



Installation:



The clamp is designed to connect two pipes of equal outside diameter.

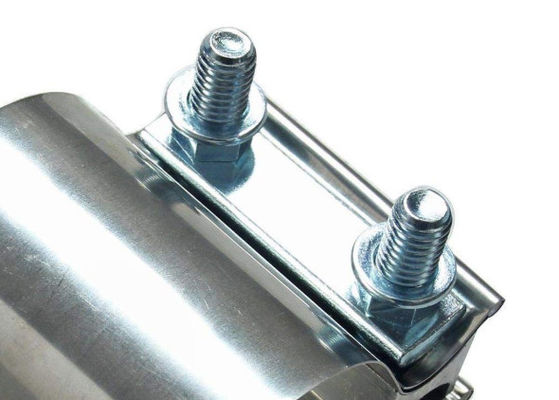

Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp 2

Packing and delivery:



Package method:Plastic bag +carton or as clients's request

Delivery time:in 3 days if stocks available, new production time depends on ordered quantity

Payment terms:T/T (30% as deposit, balance shall be paid against the copy of bill.)

Shipping terms: FOB, CIF, CNF DDP etc.

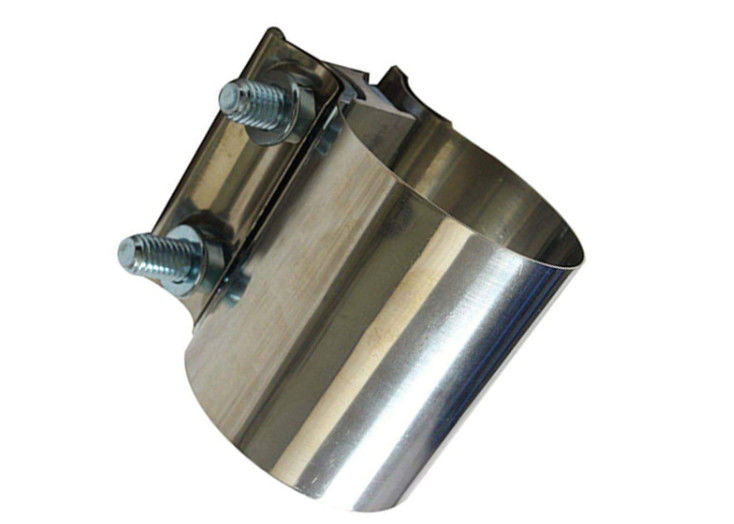

Anti Corrosion SS304 57mm 2.25 Exhaust Sleeve Clamp 3
