Product Details:
|
| Name: | Auto Bellows Interlock Mesh Braided Exhaust Muffler Pipe , Flexible Exhaust Pipe Bellows | Fitment: | Universal |
|---|---|---|---|
| Inlet/Outlet: | 1.5"-6" | Delivery: | 10-14 Days |
| Length: | 4"-12" | Material: | 304 Stainless Steel |
| MOQ: | 1pc | Application: | Vehicle Engine Exhaust System |
| Function: | Decrease Engine Noise And Vibration | Wall Thickness: | 1.0-1.2mm |
| Highlight: | 45mm×254mm Stainless Steel Exhaust Flex Pipe,45mm×254mm flexible auto exhaust pipe,45mm×254mm flexible steel exhaust pipe |
||

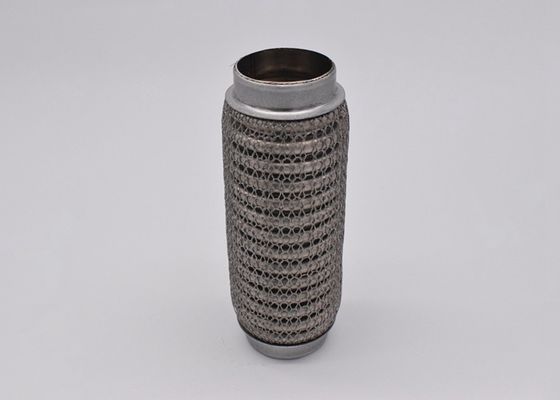

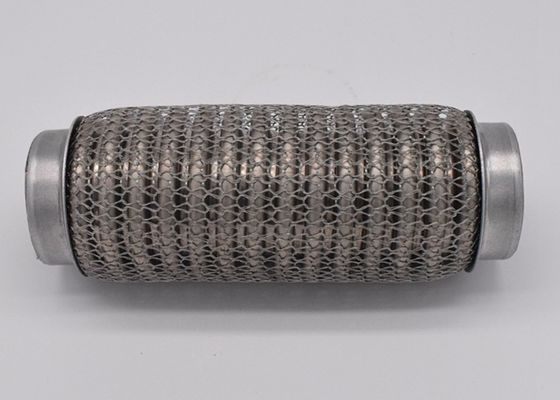

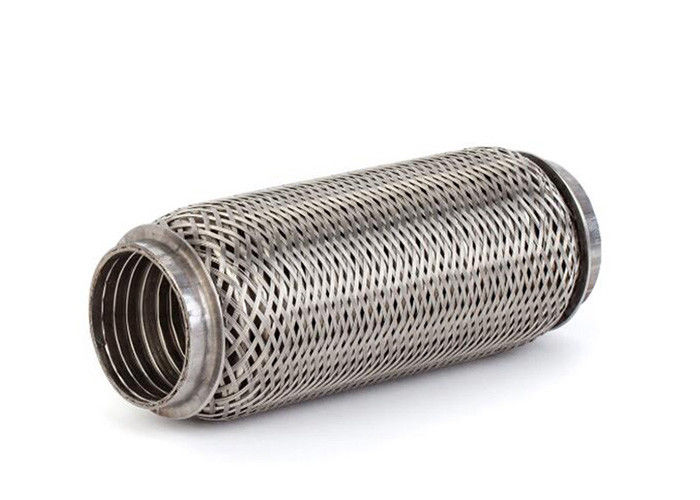

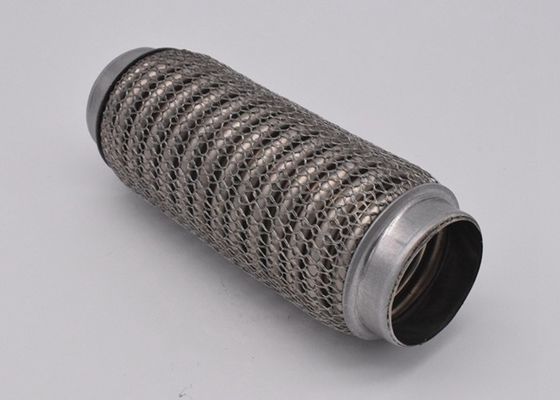

Auto Bellows Interlock Mesh Braided Exhaust Muffler Pipe , Flexible Exhaust Pipe Bellows
► Product Description:
The Flexible Exhaust Pipe Bellows is installed in the exhaust pipe between the engine exhaust manifold and the muffler, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system. Bellows can be used in the exhaust system of large vehicles such as trucks, buses, buses, etc., for the high temperature portion of the engine exhaust manifold.
► Sizes of the available exhaust pipes:
| Nominal Inside Diameter I.D. |
Overall Length O/L |
Nominal Inside Diameter I.D. |
Overall Length O/L |
Nominal Inside Diameter I.D. |
Overall Length O/L |
| 1-3/4(45mm) | 4”(102mm) | 2-1/2”(63.5) | 4”(102mm) | 43mm | 120mm |
| 6”(152mm) | 6”(152mm) | 165mm | |||
| 8”(203mm) | 8”(203mm) | 180mm | |||
| 9”(230mm) | 9”(230mm) | 50mm | 120mm | ||
| 10”(254mm) | 10”(254mm) | 165mm | |||
| 11”(280mm) | 11”(280mm) | 54.5mm | 120mm | ||
| 12”(305mm) | 12”(305mm) | 150mm | |||
| 2”(51mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) | 180mm | |
| 6”(152mm) | 6”(152mm) | 200mm | |||
| 8”(203mm) | 8”(203mm) | 250mm | |||
| 9”(230mm) | 9”(230mm) | 60mm | 160mm | ||
| 10”(254mm) | 10”(254mm) | 200mm | |||
| 11”(280mm) | 11”(280mm) | 240mm | |||
| 12”(305mm) | 12”(305mm) | 65mm | 150mm | ||
| 2-1/4”(57.2mm) | 4”(102mm) | 3-1/2”(89mm) | 6”(152mm) | 200mm | |
| 6”(152mm) | 8”(203mm) | 70mm | 100mm | ||
| 8”(203mm) | 9”(230mm) | 120mm | |||
| 9”(230mm) | 10”(254mm) | 150mm | |||
| 10”(254mm) | 12”(305mm) | 200mm | |||
| 11”(280mm) |
Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125... |
||||
| 12”(305mm) | |||||
►Types:
►Drawing of the exhaust pipe:
►Features:
►Warehouse, Packing and Delivery
25pcs to a carton , then into the pallet
