Braided 2"X4"X6" Stainless Steel Flexible Connector

Braided 2"X4"X6" Stainless Steel Flexible Connector
Braided 2"X4"X6" Stainless Steel Flexible Connector Braided 2"X4"X6" Stainless Steel Flexible Connector Braided 2"X4"X6" Stainless Steel Flexible Connector

Large Image :  Braided 2"X4"X6" Stainless Steel Flexible Connector

Product Details:
Place of Origin: CHINA
Brand Name: YP
Certification: ISO
Model Number: YPEXF-020
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1.8~2.0 PER PIECE
Packaging Details: plastic bag+ carton + woven bag
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T Western Union
Supply Ability: 100000 pieces per Month
Detailed Product Description
Product Name: Stainless Steel Braided Flex Connector With Extension Pipe For Car Exhaust System Materials: Stainless Steel 304 / 201 / 409
Dimension: 2" X 4" X 6" Structure: Double Layers Bellow + Inner And Outer Braid + Extension Pipe
Total Length:: 6" Or As Request Application: Car Exhaust System
Type: Exhaust Flex Connector Advantage: Flexible And Durable
Related Product: Muffler / Resonator / Exhaust Tip Package: Plastic Bag + Carton + Woven Bag
High Light:

2"x4"x6" stainless steel flexible connector

,

2"x4"x6" ss flexible connector

,

SS304 braided flex connector

Stainless Steel braided Flex Connector With Extension Pipe For Car Exhaust System



Products Details:



Stainless Steel Exhaust Braided Flex Connector With Extension Pipe For Car Exhaust System



This universal replacement flex connector can withstand temperatures in excess of 1100 degrees. - Stainless Steel Flex with Aluminized Collars. - Standard Lining for Noise Reduction. - This flex replaces a blowing or damaged flex on your exhaust. - This flex can be used in your custom built system to reduce wear from engine vibration and to make sure your pipe lines up with the manifold correctly. - Easy clamp on installation (can be welded or clamped).

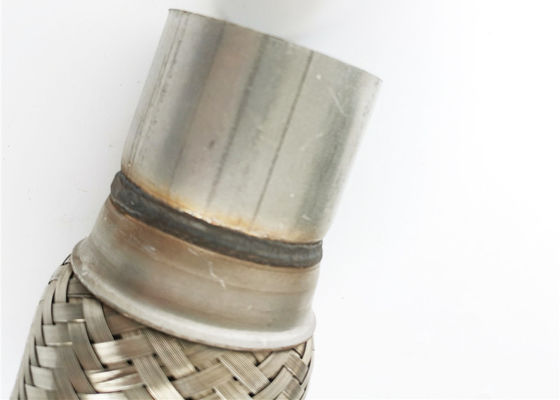

Braided 2"X4"X6" Stainless Steel Flexible Connector 0

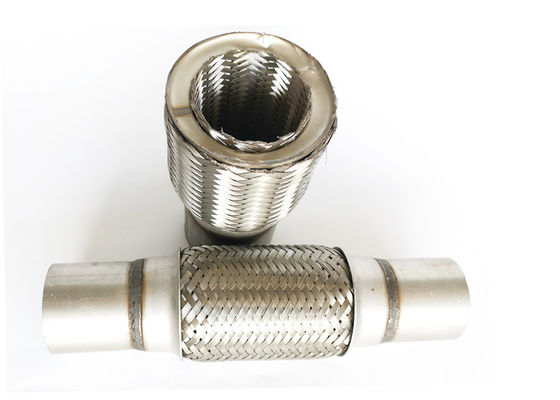

Braided 2"X4"X6" Stainless Steel Flexible Connector 1



  • Flex lock construction provides leak-free connectors
  • Flex lock construction provides a highly flexible tube design
  • Manufactured from stainless steel for durability and corrosion resistance
  • An economical repair option without having to replace entire exhaust assemblies
  • Offered in a variety of styles and sizes for your installation needs



Materials:



  • Bellow materials: Stainless steel 304 (thickness 0.25-0.30mm)
  • Braid and interlock: Stainless steel 304
  • Collars (cap): Stainless steel or aluminized steel
  • Nipple (extension tube): Stainless steel or aluminized steel



Specification:



Inner Diameter (ID) Flex length(L) Overall length(L)
Inch mm Inch mm Inch mm
1-3/4" 45 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
  48 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
2" 50.8 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
  54 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10 254 14" 356
2-1/4" 57.2 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
2-1/2" 63.5 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356
3" 76.2 4" 102 8" 203
6" 152 10" 254
8" 203 12" 305
10" 254 14" 356

Customized dimension are also available.



Structures:



1) bellows + out braid

2) bellows + out braid + inner braid

3) bellows  +out braid + inner braid + nipple (extension tube)

4) bellows + out braid + inter lock

5) bellows + out braid + inter lock + nipple (extension tube)



Others & as samples and drawings

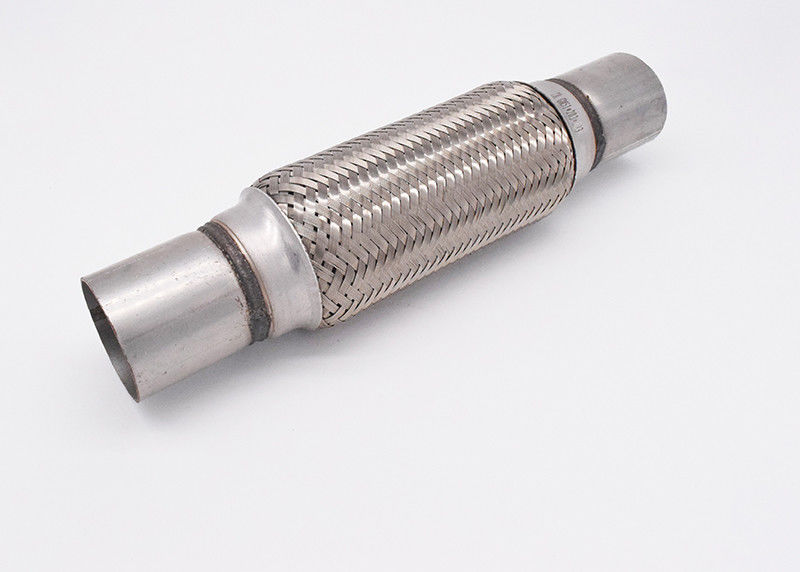

Braided 2"X4"X6" Stainless Steel Flexible Connector 2



Packaging and Delivery:



Fast delivery: in 5-8 days

Lead time for new production: No more than 30 days

Shipping terms: EXW FOB CIF

Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.



Braided 2"X4"X6" Stainless Steel Flexible Connector 3



We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
