Product Details:
|
| Product Name: | Exhaust Super Flex Connector Stainless Steel 2.5″-3.00” | Bellow Materials: | Stainless Steel 304 / 201/ 202 /409 |
|---|---|---|---|
| Diameter Size: | 1-1/2" 1-3/4" 2" 2-1/2" 2-3/4" 3" | Cap Materials: | Stainless Steel Or Aluminized Steel |
| Length:: | 4" 6" 8" 10" | Car Fitment: | Universal |
| Type: | Exhaust Pipe Connector | Advantage: | Flexible And Durable |
| Application: | Univeral Car / Truck | Package: | Plastic Bag + Carton + Woven Bag |
| High Light: | 2.5 Inch 202 Stainless Steel Exhaust Flex Pipe,SS202 2.5 inch exhaust flex pipe,SS202 exhaust flex connector |
||
Exhaust Super Flex Connector Stainless Steel exhaust flex pipe 2.5″-3.00" For Auto engine and muffler
Exhaust Super Flex Connector Stainless Steel 2.5″-3.00”

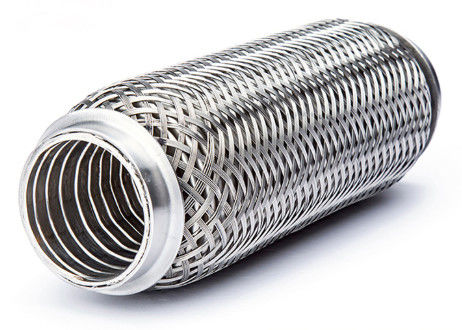

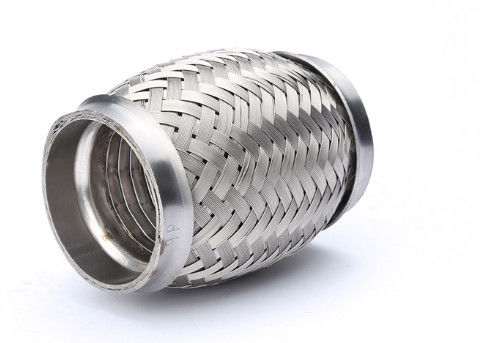

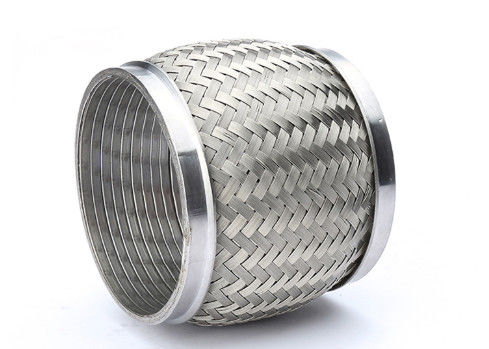

Exhaust Superflex Connector
The Exhaust Superflex Connector consists of four layers. The outer layer is made from high-quality stainless steel using the Superflex weaving technology. The inner layer is presented by the sealed stainless steel flex tube, which gives the flex pipe additional reliability and durability. Between these layers, there is a double-layer bellows (Stainless Steel double-ply construction), also made of AISI 304 stainless steel. Standard Caps are installed on both sides of the exhaust Superflex connector, they securely fasten all four layers and allow the spare part to be mounted in the exhaust system by welding exhaust pipes.
Malfunctioning exhaust Superflex pipe can be easily replaced with a new one without the necessity to purchase the entire exhaust unit. Moreover, there is no need to remove the whole exhaust system. Only to cut out the failed exhaust flex pipe and install a new spare part using the welding method instead would be enough.
Brief introduction:
| Material | Stainless steel 304 / 201/ 202 /409 are all available |
| Structure | Double layers bellow + Interlock + external wire braid |
| Application |
Suit for Universal car and truck. |
| Advantage | Strict quality control during the processing. |
|
Professinal design and beautiful welding line. |
|
| High performance flexibility and durable. One year warantee. | |
|
Highly inispected before shipping. |
|
|
Delivery on time and best after-sales service |
Related products:
Flex connecter are available in several structure, such as bellows + outer braid, bellow + inner braid and outer braid, bellow + interlock + outer braid, bellow + interlock + wire mesh, bellow + inner braid and outer braid + nipple / extension pipe.
Application:
Bellows can be used in the exhaust system of large vehicles such as trucks, buses, freightliner etc., for the high temperature portion of the engine exhaust manifold. The exhaust bellows is installed in the exhaust pipe between the engine exhaust manifold and the mufller, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of exhaust muffler system.
Packaging and Delivery:
We have stocks for urgent delivery, in 3-5 days.
For new production, the lead time depends on the order quantity, but never more than 30 days.
Shipment terms: EXW FOB CIF
Packaging: Plastic bag for each item, then seaworthy carton with waven bag and bandage
We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
Tel: 19166230458
