Product Details:
|
| Product Name: | Universal Flexible Pipes To Truck Exhaust System Stainless Steel Flex Joints | Bellow Materials: | Stainless Steel 304 / 201/ 202 /409 |
|---|---|---|---|
| Inside Diamter: | 2.36" / 60mm | Structure: | Bellow + Inner Braid + Out Braid + Nipple |
| Total Length:: | 8" / 203mm Or As Request | Application: | Truck Exhaust System |
| Type: | Truck Flex Pipe | Advantage: | Flexible And Durable |
| Condition: | 100% New | Package: | Plastic Bag + Carton + Woven Bag |
| High Light: | 2.36"×8" universal exhaust flex pipe,0.30mm universal exhaust flex pipe,2.36"×8" stainless flexible exhaust pipe |
||

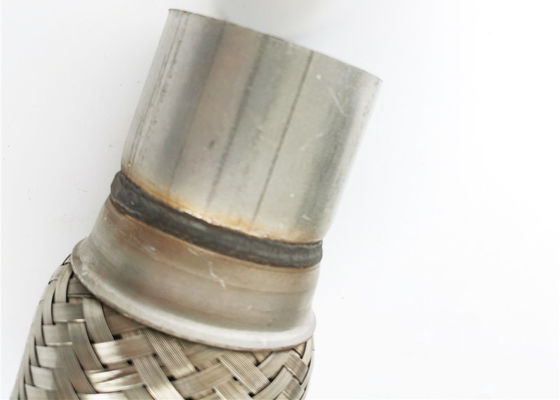

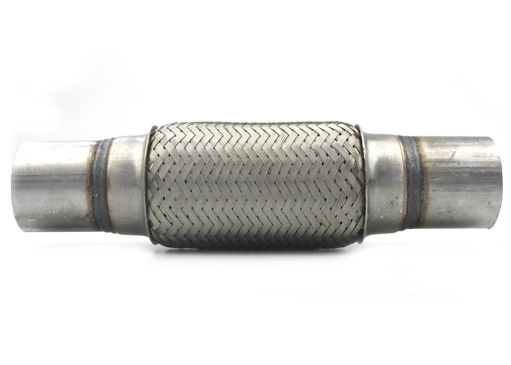

Universal Flexible Pipes To Truck Exhaust System stainless steel flex joints
Product description:
A flex pipe is flexible piece of pipe that allows the exhaust system some flexibility. Flex pipes are an essntial part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex pipe protects your exhaust system from breakage. Without that extra flex the rocking motion would crack the exhaust system causing a loud leak.
Common sizes are as follows, customizable sizes are available
|
Diameter (I.D.) |
Pipe Length |
Overall Length (OAL) |
Diameter (I.D.) |
Pipe Length |
Overall Length (OAL) |
Extensions |
| 1-1/2" | 4" | 4" | 1-1/2" | 4" | 8" | 2" |
| 1-1/2" | 6" | 6" | 1-1/2" | 6" | 10" | 2" |
| 1-1/2" | 8" | 8" | 1-1/2" | 8 | 12" | 2" |
| 1-1/2" | 10" | 10" | 1-1/2" | 10" | 14” | 2" |
| 1-3/4" | 4" | 4" | 1-3/4" | 4" | 8" | 2" |
| 1-3/4" | 6" | 6" | 1-3/4" | 6" | 10" | 2" |
| 1-3/4" | 8" | 8" | 1-3/4" | 8" | 12" | 2" |
| 1-3/4" | 10" | 10" | 1-3/4" | 10" | 14" | 2" |
| 1-3/4" | 12" | 12" | 1-3/4" | 12" | 16" | 2" |
| 2" | 4" | 4" | 2" | 4" | 8" | 2" |
| 2" | 6" | 6" | 2" | 6" | 10" | 2" |
| 2" | 8" | 8" | 2" | 8" | 12" | 2" |
| 2" | 10" | 10" | 2" | 10" | 14" | 2" |
| 2" | 12" | 12" | 2" | 12" | 16" | 2" |
| 2-1/4" | 4" | 4" | 2-1/4" | 4" | 8" | 2" |
| 2-1/4" | 6" | 6" | 2-1/4" | 6" | 10" | 2" |
| 2-1/4" | 8" | 8" | 2-1/4" | 8" | 12" | 2" |
| 2-1/4" | 10" | 10" | 2-1/4" | 10" | 14" | 2" |
| 2-1/4" | 12" | 12" | 2-1/4" | 12" | 16" | 2" |
| 2-1/2" | 4" | 4" | 2-1/2" | 4" | 8" | 2" |
| 2-1/2" | 6" | 6" | 2-1/2" | 6" | 10" | 2" |
| 2-1/2" | 8" | 8" | 2-1/2" | 8" | 12" | 2" |
| 2-1/2" | 10" | 10" | 2-1/2" | 10" | 14" | 2" |
| 2-1/2" | 12" | 12" | 2-1/2" | 12" | 16" | 2" |
| 3" | 4" | 4" | 3" | 4" | 8" | 2" |
| 3" | 6" | 6" | 3" | 6" | 10" | 2" |
| 3" | 8" | 8" | 3" | 8" | 12" | 2" |
| 3" | 10" | 10" | 3" | 10" | 14" | 2" |
| 3" | 12" | 12" | 3" | 12" | 16" | 2" |
| 4" | 4" | 4" | 4" | 4" | 8" | 2" |
| 4" | 6" | 6" | 4" | 6" | 10" | 2" |
| 4" | 8" | 8" | 4" | 8" | 12" | 2" |
| 4" | 10" | 10" | 4" | 10" | 14" | 2" |
Appication:
Bellows can be used in the exhaust system of large vehicles such as trucks, buses, freightliner etc., for the high temperature portion of the engine exhaust manifold. The exhaust bellows is installed in the exhaust pipe between the engine exhaust manifold and the mufller, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of exhaust muffler system.
Keyword: exhaust flex pipe, exhaust corrugated bellow pipe

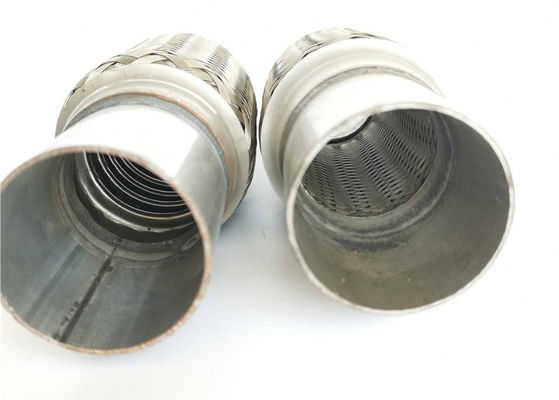

Structures choice:
1) bellows+out braid+inner braid
2) bellows+out braid+inner braid+nipples
3) Bellow + out braid
4) bellows + out braid + wire mesh
Packaging and Delivery:
Fast delivery: in 5-8 days
Lead time for new production: No more than 30 days
Shipping terms: EXW FOB CIF
Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.
We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
