Seated SS304 77mm 3 Inch V Band Clamp Kit

Recommedation is good. Reception is professional. Wish to place more orders with flexible exhaust pipe.

—— Rodrigo Favaro

Good company with nice service and high quality for exhaust muffler.

—— John Hermans

Thanks for your good after-sale service. Popular design for the exhaust pipe and muffler system.

—— Aidyn Hadiev

Good support. High quality of exhaust clamps. We'll reorder soon.

—— OAKANTSE Lucas

I'm Online Chat Now

Seated SS304 77mm 3 Inch V Band Clamp Kit

Seated SS304 77mm 3 Inch V Band Clamp Kit
Seated SS304 77mm 3 Inch V Band Clamp Kit Seated SS304 77mm 3 Inch V Band Clamp Kit

Large Image :  Seated SS304 77mm 3 Inch V Band Clamp Kit

Product Details:
Place of Origin: Hebei
Brand Name: YP
Certification: ISO
Model Number: YPVBK300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD5.0~5.5 PER PIECE
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product Name: Seated 3" Stainless Steel V-Band Kit Stainless Steel Exhaust Clamp For Exhaust Piping Size: 3 INCH
Materials: T304 Band Width: 3/4"(19mm)
Flange: Male And Female Surface: Polished
Package: Individual Packaging Type: Exhaust Clamp
Application: Auto Exhaust System
High Light:

77mm 3 Inch V Band Clamp

,

SS304 3 Inch V Band Clamp

,

77mm V Band Clamp Kit

Goods Description:

Seated 3" Stainless Steel V-Band Kit Stainless Steel Exhaust Clamp For Exhaust Piping

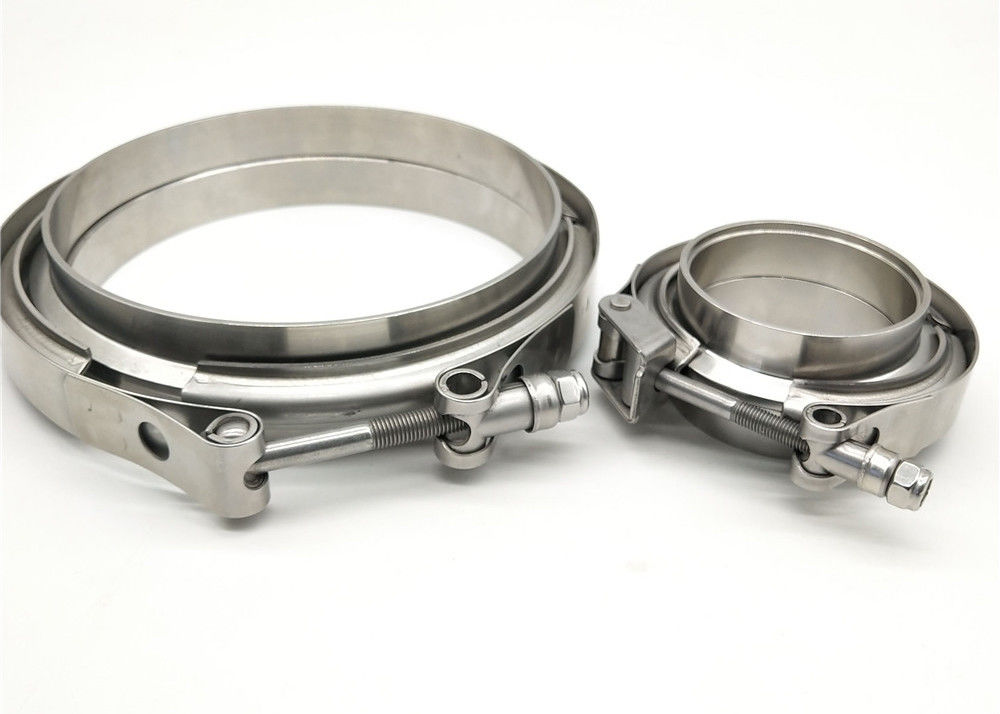

3 inch stainless steel exhaust clamp kit - Complete V-band kit is ideal for performance exhaust systems, downpipes, catback exhausts, turbo back exhausts and more. High quality CNC stainless steel flanges provide a leak free exhaust seal with no gasket required. The V-band clamp allows you to quickly connect and disconnect exhaust pipes without having to fumble with nuts or bolts.

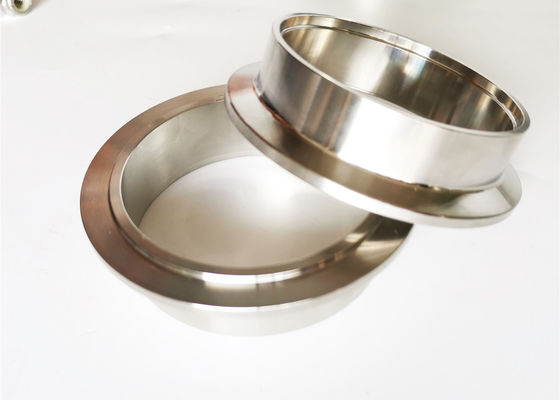

DESIGNED FOR 3" EXHAUST PIPES - This kit is specifically designed for 3" exhaust pipes. The flanges feature a recessed opening which allows for a 3" exhaust to easily slip inside the flange, providing a perfect overlap seam for welding. Once the flanges are welded in place the included V-band clamp slips over the connections and secures the flanges together, providing a leak-free seal.

DETAILED SPECIFICATIONS:

Flange ID 3.000"
Flange OD 3.580"
Individual Flange Thickness (Single Flange) 3/4"
Clamp Bandwidth 3/4"
Clamp Type V-Band, Standard T-Bolt
Material Type 304 Stainless steel

Provided Fasteners

Metal Lock Nut (QTY: 1)
Non-Locking Nut (QTY: 1)

Fastener Size (Material)
8mm-1.5 (304 Stainless)
Seated SS304 77mm 3 Inch V Band Clamp Kit 0

Specification:

Size(Inch) Flange ID(mm) Exhaust pipe OD(mm) Materials
1.5 38.9 38.1 Stainless steel 304
1.75 45.3 44.5
2 51.6 50.8
2.25 57.9 57.1
2.5 64.3 63.5
2.75 70.6 69.8
3 77 76.2
3.25 83.3 82.5
3.5 89.7 88.9
3.75 96.4 95.6
4 102.4 101.6
4.5 115.1 114.3
5 127.8 127
6 153.2 152.4



Application & Feature:

When you're making a downpipe, catback exhaust, turbo back exhaust, mid pipe, or up pipe for your car, truck, or other vehicle this V-band kit is ideal for connecting different pipe sections. Conventional exhaust flanges multiple nuts, bolts, washers and a gasket. A V-band kit eliminates all of these and allows for a connection with a single nut.



EASY ON, EASY OFF - A V-band kit allows you to connect or disconnect sections of your exhaust by removing a single nut. Conventionally exhaust flanges involve multiple bolts, washers, nuts, and gaskets. Save time and have piece of mind that your exhaust sections will stay sealed and secured with a 3" V-band kit.



Seated SS304 77mm 3 Inch V Band Clamp Kit 1



About us:

We are speicalized in exhaust system and committed to supply a completed line of exhaust system compoments including exhaust flexible pipe, performance muffler & scilencer, tail pipe, catalytic converter for auto, motorcycle and truck. We not only supplied clients premium products, but also good service and support you need to get orders quickly and accurately.

Our main market: USA, Europe, The Middle East, Southeast Asia, and Russia

Seated SS304 77mm 3 Inch V Band Clamp Kit 2
