3" x 4" Inch Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler

3" x 4" Inch  Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler
3" x 4" Inch  Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler 3" x 4" Inch  Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler 3" x 4" Inch  Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler

Large Image :  3" x 4" Inch Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler

Product Details:
Place of Origin: Hebei
Brand Name: YP
Model Number: YP-EXF0112
Payment & Shipping Terms:
Minimum Order Quantity: Individual
Price: USD1.8~1.9 PER PIECE
Packaging Details: Film bag + carton
Delivery Time: 5-8 days if stocks available
Payment Terms: L/C T/T WESTERN UNION MONEYGRAM
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Product: 3" X 4" Inch Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler Size: 3" X 4"
Materials: Stainless Steel 201 / 304 / 409 Body Lengh: 4" Or As Customer's Request
Constrtuction: Outer Braid + Bellow + Interlock Liner Cap Materials: Stainless Steel Or Aluminized
Bellow: Double Layers Feature: Duarable And Factory Direct Supply
Application: Auto Part Aftermarket



Product description

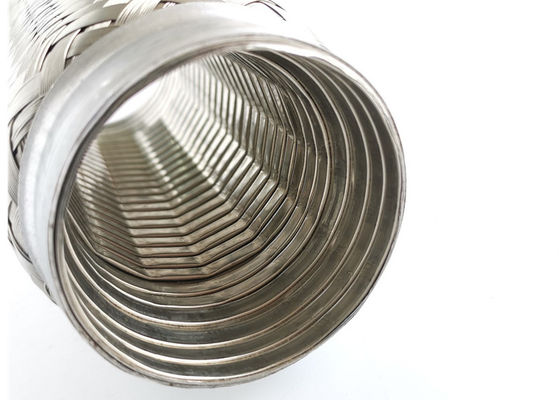

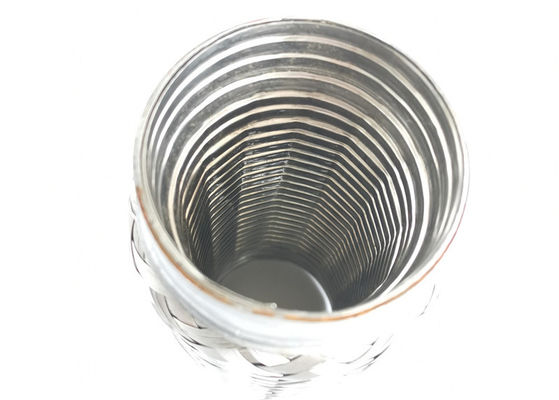

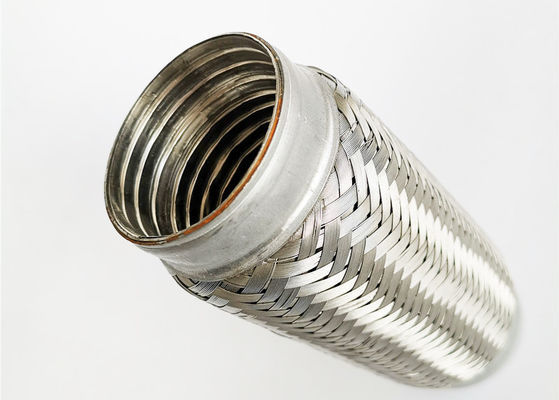

3" x 4" Inch Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler

Flex couplers are used to isolate engine vibration to your exhaust components, and prevent cracks in your downpipes, cat-backs headers and turbo manifolds. The Stainless Steel Flex Couplers that have bellows with interlocking lining help increased exhaust flow through the coupler, and prevent excessive back pressure to build. These are the only type of flex coupler that can withstand high pre-turbo exhaust temperatures, meaning you can use these flex couplers when complex turbo header designs are needed to prevent turbo header cracks. Perfect for turbo downpipes!

 Features:

  • We have introduced Stainless Steel Flex Couplers that have bellows with interlocking lining to help increased exhaust flow through the coupler, and prevent excessive back pressure to build.
  • Made of 201/304 stainless steel throughout, 201/409 steel weld rings.
  • Made to handle forced induction turbo and supercharged vehicles.
  • Interlocking lining. Nonmagnetic.
  • 3" x 4" long.





Discription Flexible couplers Parts No. YP-EXF0112
Size 1-1/2"~4" Style Bellow + Outer braid + interlock liners
Flex pipe Material Stainless steel 304 201 409 Joint Material Stainless steel/aluminum
Car Make Universal Application Exhaust pipe of various of car,bus,truck,and so on.
Packing Plastic bag and seaworthy box Package Quantity 1 pcs
Brand RM Place of Origin Tianjin, China
Certificate ISO Warranty One Year







Specification

3" x 4" Inch  Stainless Steel Exhaust Flex Pipe Stainless Steel Interlocking Liner Coupler 0



Inner Diameter (ID) Length(L) Inner Diameter (ID) Length(L)
1-3/4” (45mm) 4”(102mm) 3”(76.2mm) 4”(102mm)
6”(152mm) 6”(152mm)
7”(178mm) 8”(203mm)
8”(203mm) 10”(254mm)
9”(230mm) 12”(305mm)
10”(254mm) 42mm 120mm
11”(280mm) 165mm
12”(305mm) 180mm
2”(50.8mm) 4”(102mm) 50mm 120mm
6”(152mm) 165mm
7”(178mm) 55mm 120mm
8”(203mm) 165mm
9”(230mm) 180mm
10”(254mm) 200mm
11”(280mm) 250mm
12”(305mm) 60mm 160mm
2-1/4”(57.2mm) 4”(102mm) 200mm
6”(152mm) 240mm
7”(178mm) 65mm 150mm
8”(203mm) 200mm
9”(230mm) 70mm 100mm
10”(254mm) 120mm
11”(280mm) 150mm
12”(305mm) 200mm
2-1/2”(63.5mm) 4”(102mm) Note: Customized size are available.
6”(152mm)
7”(178mm)
8”(203mm)
9”(230mm)
10”(254mm)
11”(280mm)
12”(305mm)



About us




We are a leading supplier of exhaust connectors in China. We design, engineer and manufacture non-load supporting under body flex and self


supporting flex couplings to match each vehicle’s unique platform. Our Engineers work closely with their respective Engineering departments to:



satisfy emission requirements, reduce the transfer of stress and vibration to the vehicle, improve Vehicle Noise, Vibration & Harshness.









Packing and delivery:



Plastic bag + seaworthy carton



Lead time: 5-8 days if stocks available, otherwise depends on the purchased quantity.
