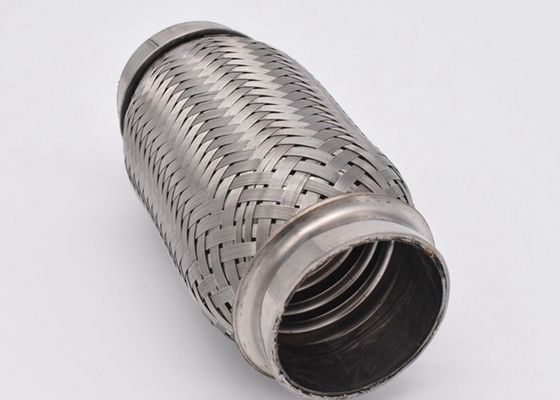

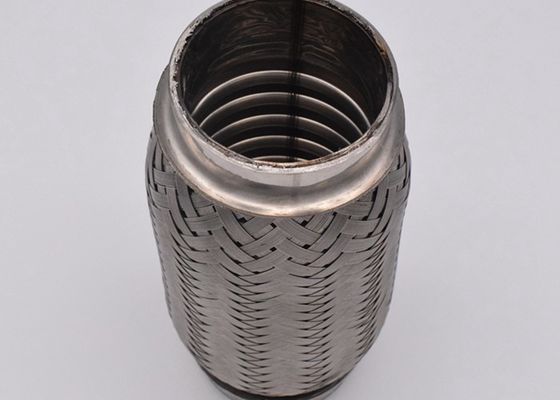

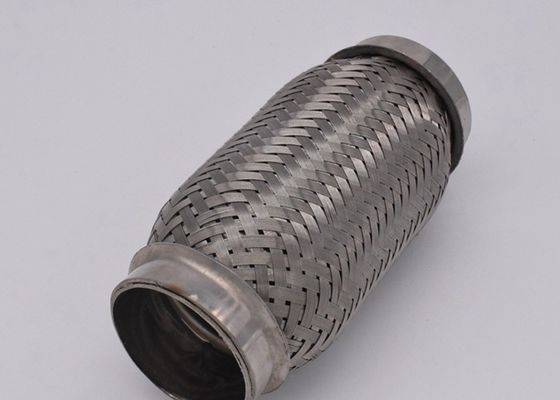

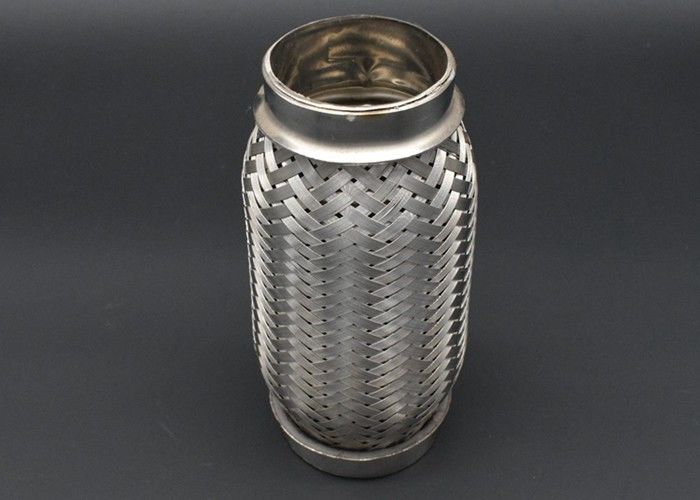

Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows

Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows
Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows

Large Image :  Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows

Product Details:
Place of Origin: Hebei , China
Brand Name: YP
Model Number: YP13404-YP70200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$ 1.5--8.99 /PC
Packaging Details: carton
Delivery Time: 10-14 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000PCS/MONTH
Detailed Product Description
Material: Stainless Steel 304 / 409 Finish: Plain
Warranty: 1 Year Car Model: Universal
Delivery Time: 10-14 Days MOQ: 1pc
Usage: Vehicle Exhaust System Model Number: 38mm - 102mm
Length: 4”-10” Color: Silver
High Light:

102mm Stainless Steel Exhaust Flex Pipe

,

102mm small engine exhaust flex pipe

,

102mm flexible steel exhaust pipe

Car Turbo Auto Engine Braid Stainless Steel Flexible Exhaust Pipe with Bellows


Product Introduction


Stainless steel exhaust flexible pipes is a part of the engine exhaust system of the car. They're constructed with 1 or 2-ply bellows and together with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks that allows your car to be more comfortable and enjoyable in use. Such flex pipes are provided in a variety of lengths, diameters, and many styles.
For example, the common one is a flex pipe with four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow, also made of stainless steel. Standard Caps with connectors are installed on both sides of the exhaust flex pipe. They securely fasten all four layers and allow them to install this element using clamps or by the "pipe-to-pipe" welding method and accurately match the right size.
Many types of stainless exhaust flex pipe available at us, pls be free to tell us your requirement.


 Product Details:



Product Name

Stainless Steel Exhaust Muffler Flexible Pipe with Bellows

Material

Stainless Steel 409 / 304 / 316, Aluminum

Quality

Genuine / OEM

Packing

Bubble bag, Wooden Case, Neutral packing or negotiated

MOQ

1 pc

Size / Inner Diameter

1.5"-6" (1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0” )

Length

4” - 10”

Inner

Bellows

Color

Silver

Price Term

EXW , FOB , CIF , C&F

Car Model

Universal

Application / Usage

Muffler , Car Exhaust System , Turbos , Waste-gates , Blow-off Valves

Delivery time

5 days if stock , 10-20 if no stock as per quantity

Advantage

  • High flexibility with long life
  • For high temperature
  • Anti-corrosion
  • Absorb noise and decouple vibration

Warranty

1 year
Sample Available


★Product Specifications:



Part No. innner dia. inch inner diamater mm Length inch Length mm
YP13404 1-3/4" 45 4" 102
YP13406 1-3/4" 45 6" 152
YP13407 1-3/4" 45 7" 178
YP13408 1-3/4" 45 8" 203
YP13409 1-3/4" 45 9" 230
YP13410 1-3/4" 45 10" 254
YP13411 1-3/4" 45 11" 280
YP13412 1-3/4" 45 12" 305
YP20004 2" 50.8 4" 102
YP20006 2" 50.8 6" 152
YP20008 2" 50.8 8" 203
YP20009 2" 50.8 9" 230
YP20010 2" 50.8 10" 254
YP20011 2" 50.8 11" 280
YP20012 2" 50.8 12" 305
YP21404 2-1/4" 57.2 4" 102
YP21406 2-1/4" 57.2 6" 152
YP21408 2-1/4" 57.2 8" 203
YP21409 2-1/4" 57.2 9" 230
YP21410 2-1/4" 57.2 10" 254
YP21411 2-1/4" 57.2 11" 280
YP21412 2-1/4" 57.2 12" 305
YP21204 2-1/2" / 3" 63.5 / 76.2 4" 102
YP21206 2-1/2" / 3" 63.5 / 76.2 6" 152
YP21208 2-1/2" / 3" 63.5 / 76.2 8" 203
YP21209 2-1/2" / 3" 63.5 / 76.2 9" 230
YP21210 2-1/2" / 3" 63.5 / 76.2 10" 254
YP21211 2-1/2" / 3" 63.5 / 76.2 11" 280
YP21212 2-1/2" / 3" 63.5 / 76.2 12" 305


Braid Stainless Steel Flexible Exhaust Pipe​ Types:



 We Supply many types of stainless steel flexible exhaust pipe , below are the most 5 popular ones, for your reference.

1. : Braided Flexible pipe with inner bellow
2. : Braided Flexible pipe with braided liner
3. : Bellows with interlock
4.: Stainless steel Bellows
5. : Braided Flexible pipe with welded nipples

Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows 0


Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows 1



 Auto Engine 102mm Stainless Steel Exhaust Flex Pipe With Inner Bellows 2
