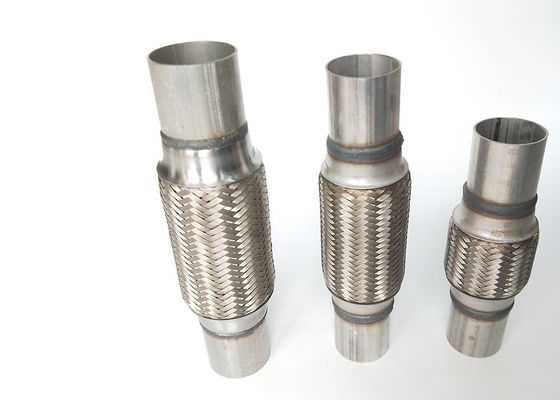

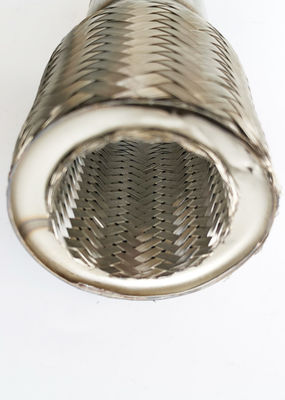

High pressure 2.5 Inch Stainless Steel Exhaust Flex Pipe For Autombile
High Pressure 2.5 Inch Stainless Steel Exhaust Flex Pipe For Autombile
The flexible pipe is an important part of car exhaust system. When you accelerate, The car’s engine moves back and forth on rubber engine mounts. The flexible pipe allows for flexibility in your exhaust system, preventing the engine’s movement and vibrations from damaging and cracking the exhaust pipe.
Material: Stainless steel 304,201,202 etc.
Caps: Aluminum steel or stainless steel
Type: Bellows+Outer Braid+Nipple extension
Feature
1.Automobile exhaust system component
2. Installed between engine and muffler
3. decrease vibration and engine noise
4.To compensate displacement and installation tolerances
5. Smooth inner surface to ensure waste gas to convey the back part
6.To Bear load
Specification

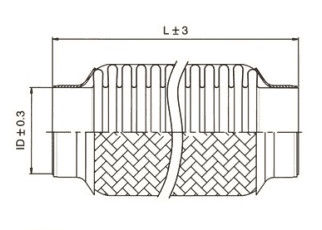

| Inner Diameter (ID) | Flex Length(L) | Overall Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 48mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2”(50.8mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 54mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/4”(57.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/2”(63.5mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 3”(76.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| Note: Customized size are available | ||
Packing and delivery:
Plastic bag + seaworthy carton
Lead time: 5-8 days if stocks available, otherwise depends on the purchased quantity.
