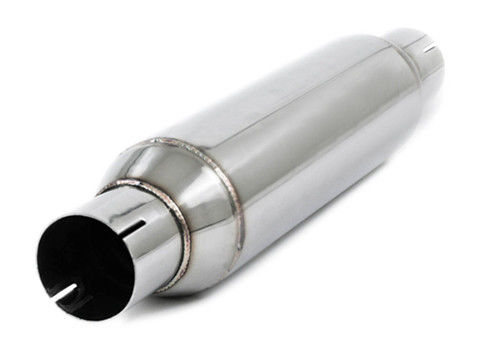

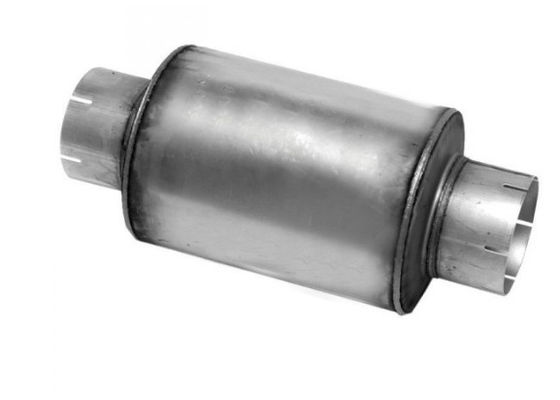

Round 1.2mm 4 Inch Inlet Outlet Car Exhaust Resonator
4 inch Inlet Outlet Car Exhaust Resonator
,1.2mm Car Exhaust Resonator
,4 inch Inlet Outlet exhaust system resonator
Product introduction
A resonator is an suplimentary sound neutralizing device that works in conjunction with the muffler and helps to further reduce the noise produced by the engine. Its construction resembles a simplified muffler and it basically operates like the resonator chamber of a muffler. It reflects sound waves back, canceling out sound in the exhaust within a given frequency range. This part is located a certain distance from the muffler to provide the resonant effect. The Resonator will lower the decible levels of the exhaust system without restricting the flow. The resonator also allows you to tune the sound of the exhaust system to achieve a specific exhaust tone that will better match the nature of your vehicle.
Features
- Designed for a quieter exhaust sound
- Cancels out sound waves to further reduce engine noise
- Aluminized steel construction for a long service life
- Straight-through design for maximum flow and power
- Does not restrict exhaust flow
- Straightforward installation inline with the exhaust system
Dimension choice
| Model number | Inlet/outlet(inch) | Body diameter(inch) | Overal length(inch) |
| YP-EXMR112-9 | 1 1/2" | 4" | 9" |
| YP-EXMR134-9 | 1 3/4" | 4" | 9" |
| YP-EXMR200-9 | 2" | 4" | 9" |
| YP-EXMR112-12 | 1 1/2" | 4" | 12" |
| YP-EXMR134-12 | 1 3/4" | 4" | 12" |
| YP-EXMR200-12 | 2" | 4" | 12" |
| YP-EXMR214-12 | 2 1/4" | 4" | 12" |
| YP-EXMR212-12 | 2 1/2" | 4" | 12" |
| YP-EXMR300-15 | 3" | 4" | 15" |
| YP-EXMR134-15 | 1 3/4" | 4" | 15” |
| YP-EXMR200-15 | 2" | 4" | 15“ |
| YP-EXMR214-15 | 2 1/4" | 4" | 15” |
| YP-EXMR212-15 | 2 1/2" | 4" | 15" |
| YP-EXMR300-15 | 3" | 4‘ | 15" |
| YP-EXMR300-16 | 3" | 4.5“ | 16" |
| YP-EXMR134-18 | 1 3/4" | 4” | 18" |
| YP-EXMR200-18 | 2" | 4“ | 18" |
| YP-EXMR212-18 | 2 1/2" | 4” | 18" |
| YP-EXMR400-43 | 4" | 5.8“ | 43" |
Customized design and size are welcome.
Usage of resonator
While mufflers reduce the exhaust volume, resonators tune the exhaust for a more pleasant sound. Resonators will remove some of the raspy and high-pitched noises from the exhaust but won’t do anything to muffle the volume. They complement mufflers by canceling out irritating buzzes and hums, as well as providing a smoother exhaust note.
Packaging and delivery
Package: Plastic bag + seaworthy carton + pallet
Delivery time: Depends on the order quantity and our production schedule. But it wont be more than 30 days.
Installation method: Clamp on and welded on.
Advantage of us
We have a complete offerings of mufflers & resonators for all segments of the industry. Our "true straight through" internals feature a stainless steel perforated tube that is wrapped in our premium quality, multi-layer sound suppression materials that will produce a low, deep tone while allowing for unrestricted flow and maximum horsepower. Our mufflers & resonators are the perfect fit and suitable for all naturally aspirated and forced induction applications.
Contact me for details if you have demand of resonator and muffler. Thanks.
